Removing and installing folding rear backrest - AR91.12-P-1720E

MODEL 202 with CODE (287a) through-loading feature

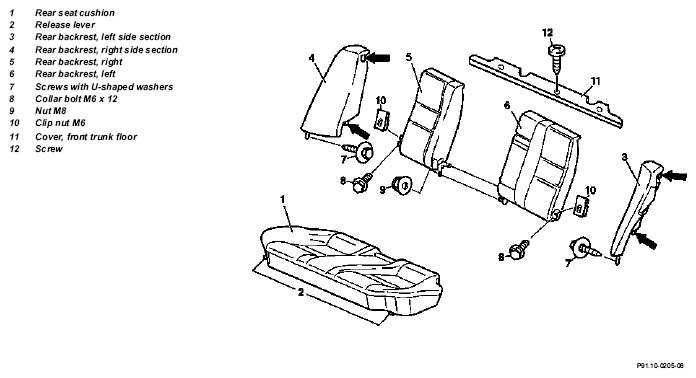

Fig 1: Identifying Folding Rear Backrest Remove/Install Components - Model 202 With Code (287a)

	Removal, installation
1	Press both release levers (2) and lift rear seat cushion (1) at front
2	Remove rear seat cushion (1)	When installing expose lap belt and belt buckles. Insert rear seat cushion (1) at rear into the two sheet metal tabs and allow to catch at front.
3	Unscrew screws (7)
4	Lift side sections of rear backrest (3 and 4) upward out of catch in rear wall (arrows)
5	Remove side sections of rear backrest (3 and 4)
6	Unlock the two rear backrests (5 and 6)
7	Fold rear backrests (5 and 6) toward front
8	Unscrew screws (12)
9	Remove cover (11) above front section of trunk floor
10	Unscrew bolts (8) and nuts (9)
11	Remove rear backrest (5 and 6)
12	Reinstall in opposite order
