Remove/Install |
|
|
| 1 |
Remove front seat |
|
AR91.10-P-1000E |
| 2 |

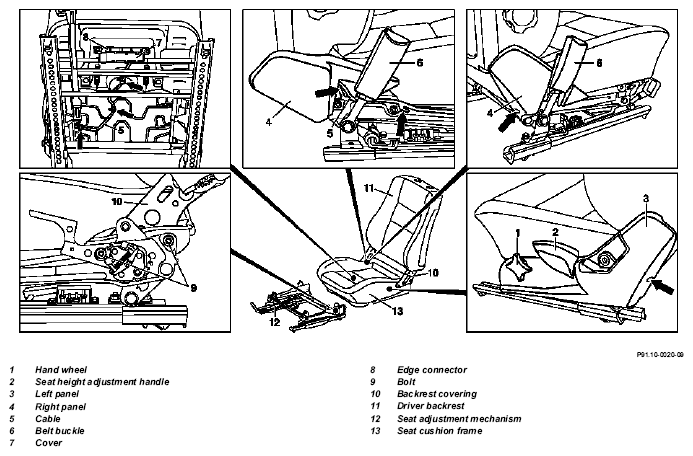

Pull off hand wheel (1) |
|
|
| 3 |
Pull off handle (2) to the front |
|
|
| 4 |
Remove screw (arrow) at panel (3) |
|
|
| 5 |
Press panel (3) forward out of the catch and remove |
|
|
| 6 |
Remove screw (arrow) on covering (4) |
|
|
| 7 |
Press panel (4) forward out of the catch, unclip cable (5) at panel (4) and take off panel (4) |
|
|
| 8 |
Unclip cover (7) at connector strip (8) and take off |
|
|
| 9 |
Expose cable (5) to seat belt buckle (6), open cable strap (3 x, arrows) for this purpose and pull out connector at connector strip (8) |
|
|
| 10 |
Remove screws (9, 4 x) at backrest fitting (10) |
Internal torx insert T40 |
*BA91.10-P-1003-01A |
| 11 |
Take driver backrest (11) off seat adjuster (12) |
|
|
| 12 |

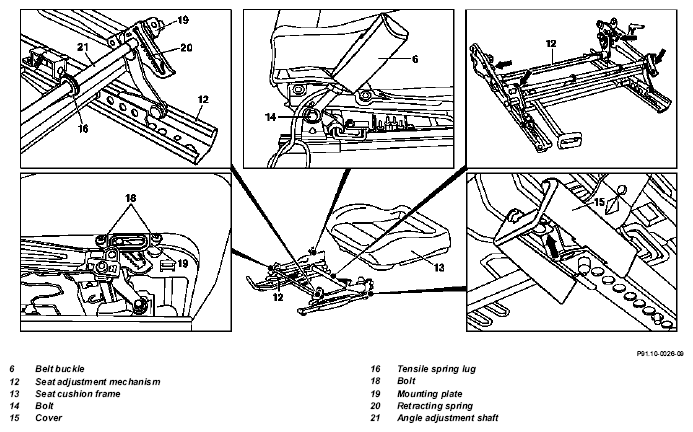

Remove screw (14) at seat belt buckle (6) |
|
*BA91.40-P-1003-01A |
| 13 |
Turn angle adjustment shaft up fully |
Use hand wheel (1). |
|
| 14 |
Unclip cover (15) at seat rail at rear left and right and pull off to the rear |
|
|
| 15 |
Detach tensile springs (16) for angle adjustment shaft (21) at seat cushion frame (13) |
|
|
| 16 |
Remove screws (18) at bearing plate (19) on left and right |
|
*BA91.10-P-1001-01A |
| 17 |
Take seat adjuster (12) off seat cushion frame (13) |
When installing grease bearing bushes and detent segment (arrows) at the seat adjuster (12) with MB lubricating paste (part number 001 989 14 51). |
|
| 18 |
Detach retracting spring (20) at bottom of detent segment for angle adjustment shaft (21) on left and right (slacken) |
|
|
| 19 |
Take angle adjustment shaft (21), both tensile springs (16) and bearing plates (19) off the seat adjuster (12) |
Flattened side of angle adjustment shaft (21) points to outside of seat when installed. |
|
| 20 |
Install in the reverse order |
|
|
