Removing and installing series resistor for heater blower - AR83.25-P-1250E
MODEL 202 up to 31.8.95

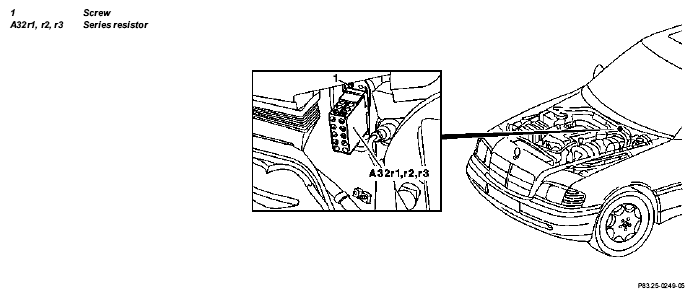

Fig 1: Identifying Series Resistor For Heater Blower Remove/Install Components - Model 202 Up To 31.8.95
| Removal, installation | |||
| 1 | Remove cover on left and right air inlet | AR83.25-P-1400E | |
| 2 | Remove air inlet | AR83.25-P-1401E | |
| 3 | Remove water collector | Before installing water collector, check function |
AR83.25-P-1402E |
| 4 | Unscrew screw (1) | ||
| 5 | Withdraw series resistor A32r1, r2, r3 (connector) | ||
| 6 | Reinstall in opposite order |
