Removing and installing trunk lid lock switch - AR80.20-P-2550E
MODEL 202 up to 30.11.94
MODEL 202 up to 31.12.93 with CODE (880a) Infrared remote central locking
MODEL 202 up to 31.5.97 with CODE (491) USA-version with CODE (498) Japanese-version
MODEL 210 / (except 210.081 /281) up to 28.2.97 with CODE (491) USA-version with CODE (498) Japanese-version
| Removal, installation | |||
| 1 | Removing, installing and adjusting trunk lid lock and striker eye | Model 202 | AR88.50-P-5020E |
| Model 210 | AR88.50-P-5020F | ||
| 2 | Unclip lock convenience switch connector (S88/2x1) and wire from lock body | ||

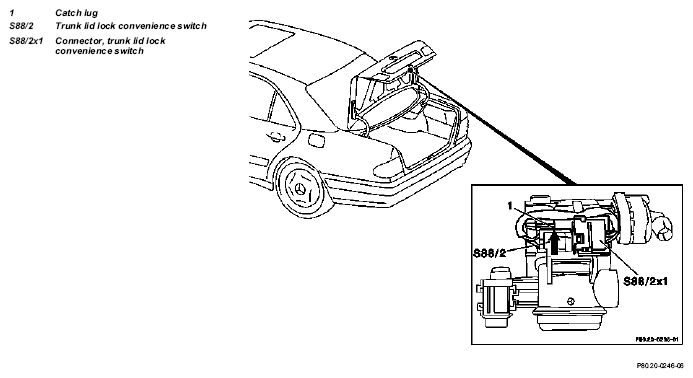

| 3 | Press catch lug (1) in direction of arrow and pull lock convenience switch (S88/2) out of lock body | ||
| 4 | Reinstall in opposite order |
