Removing and installing trunk lid actuator - AR80.20-P-2400E

MODELS 202, 210

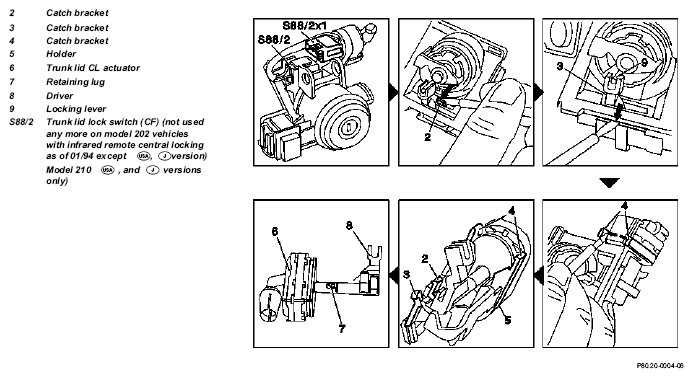

Fig 1: Identifying Trunk Lid Actuator Components

	Removal, installation
1	Remove push-button lock
2	Remove trunk lid lock switch (CF) (S88/2)	Models 202, 210 On Model 202 trunk lid lock convenience switch is eliminated on vehicles with infrared remote central locking as of 01/94, except versions. Model 210 trunk lid lock convenience switch only on - versions	AR80.20-P-2550E
3	Detach catch bracket (2) by pressing in direction of arrow
4	Detach catch bracket (3) by pressing with screwdriver in direction of arrow
5	Detach holder (5) with element (6) by pressing both catch brackets (4) in direction of arrows and pulling off of push-button lock	Installation:  When installing ensure that driver (8) surrounds locking lever (9) and that catch lugs (2-4) engage
6	Pull element (6) off of holder (5)
7	Lift retaining lug (7) on actuator (6) with pointed tool. Remove driver (8)
8	Check pneumatic operation of actuator (6)	Model 202	dh0302pa0zv32x
		Model 210	dh0303pa0zv32x
9	Reinstall in opposite order
