Removing and installing tailgate actuator - AR80.20-P-2800A
MODEL 202.07/08/18, 210.2
| Removal, installation | |||
| 1 | Remove liner on tailgate | Models 202.07/08/18 | AR68.30-P-1050A |
| Model 210.2 | AR68.30-P-1050B | ||
| 2 | Remove tailgate lock | Models 202.07/08/18 | AR72.20-P-2550A |
| Model 210.2 | AR72.20-P-2550B | ||

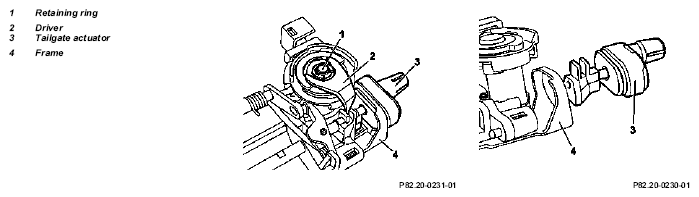

| 3 | Pull retaining ring (1) off of tailgate lock | ||
| 4 | Remove driver (2) |
NOTE:
When installing ensure that the lug on the driver engages in the guide.
|
|
| 5 | Unclip tailgate actuator (3) on frame (4) at top and bottom | ||
| 6 | Check actuator for proper pneumatic function | Models 202.07/08/18 See Diagnosis Manual, Body 3.2 PSE/ZV □ Model 210.2 See Diagnosis Manual, Body 3.3 PSE/ZV □ |
|
| 7 | Reinstall in opposite order |
