Assembling, disassembling side portal straightening set - AR60.20-P-1700E

MODEL 202.0 /1

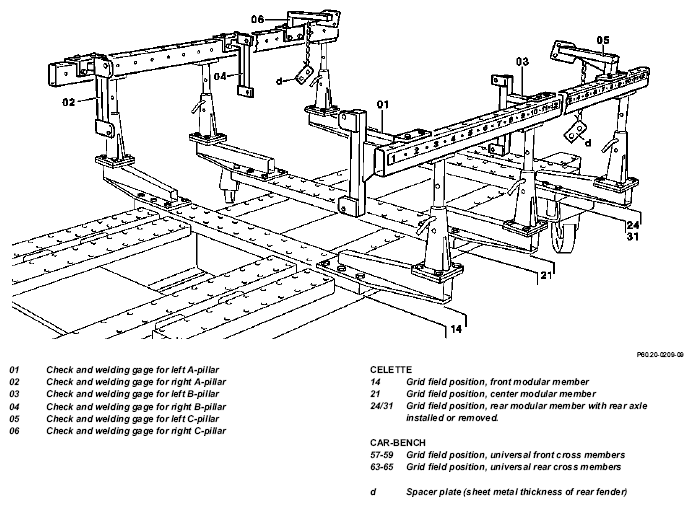

Fig 1: Identifying Side Portal Straightening Set Components - MODEL 202.0 /1

Working notes
The side portal can be used only in combination with a straightening system approved by MB and the associated straightening set
Equip straightening bench with modular members		AR60.10-P-1050E
Equip straightening bench with straightening tools	Observe set-up plans included with straightening set!	AR60.10-P-1070E
	Celette straightening set	*WE58.40-Z-1009-01E
	Car-Bench straightening set Models 202.026/029/033/086/089/093 In addition use supplementary straightening set for engine 112, 113! See ↓ *WE58.40-Z-1001-01A
	Models 202, 208 with engine 112, 113 Celette supplementary straightening set	WE58.40-Z-1012-01A
	Models 202, 208 with engine 112, 113 Car-Bench supplementary straightening set	*WE58.40-Z-1013-01A
Align vehicle exactly according to gage holes and fasten tightly to straightening set
Assembly sequence for side portal straightening set for repairs	to A and B-pillars Celette straightening system	AR60.20-P-1700-05E
	to A and B-pillars Car-Bench straightening system	AR60.20-P-1700-05EA
	to B and C-pillars, with rear axle installed Celette straightening system	AR60.20-P-1700-06E
	to B and C-pillars, with rear axle removed Celette straightening system	AR60.20-P-1700-06EA
	to B and C-pillars, with rear axle installed or removed Car-Bench straightening system	AR60.20-P-1700-06EB
	to A, B and C-pillars Celette straightening system	AR60.20-P-1700-02E

Special tools

Fig 2: Identifying Portal Frame (129 589 03 23 00)

Fig 3: Identifying Set Of Check And Welding Gages (202 589 13 23 00)

Fig 4: Identifying Set Of Multi-Z-Elements, MZ 260 (140 589 26 23 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1007-06A	Reversible ratchet
WH58.30-Z-1010-06A	Socket SW19 for hexagon head screws
WH58.30-Z-1026-06A	Screwdriver bit, 8 mm for hexagon socket head screws
WH58.30-Z-1001-11A	Double end box wrench, offset, 17 x 19 mm
WH58.30-Z-1002-11A	Double end box wrench, offset, 22 x 24 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-01A	Car bench straightening bracket set 82415, (model 202)
WE58.40-Z-1012-01A	Celette straightening bracket set 7202.309 (model 202, 208 with engine 112, 113), as supplement to 7202.300 (model 202)
WE58.40-Z-1013-01A	Car Bench straightening bracket set 82 426 (models 202, 208 with engines 112, 113), as supplement to 82 415, (model 202)
WE58.40-Z-1001-01E	Celette straightening bench
WE58.40-Z-1002-01E	Celette straightening unit
WE58.40-Z-1003-01E	Car-Bench straightening bench
WE58.40-Z-1004-01E	Car-Bench straightening lifting platform
WE58.40-Z-1005-01E	Car-Bench straightening equipment
WE58.40-Z-1007-01E	Celette module crossmember set 955.940
WE58.40-Z-1008-01E	Celette additional member 955.908
WE58.40-Z-1009-01E	Celette straightening bracket set 7202.300
WE58.40-Z-1010-01E	Car-Bench universal cross member set A 296
WE58.40-Z-1008-03A	Pneumatic ratchet
