Body, Celette-straightening set - AR60.10-P-1070E
MODEL 202.0 /1, 208.3 /4

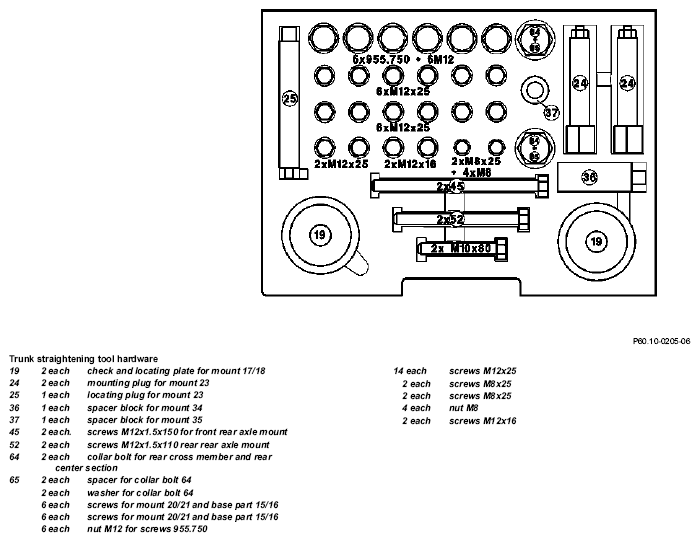

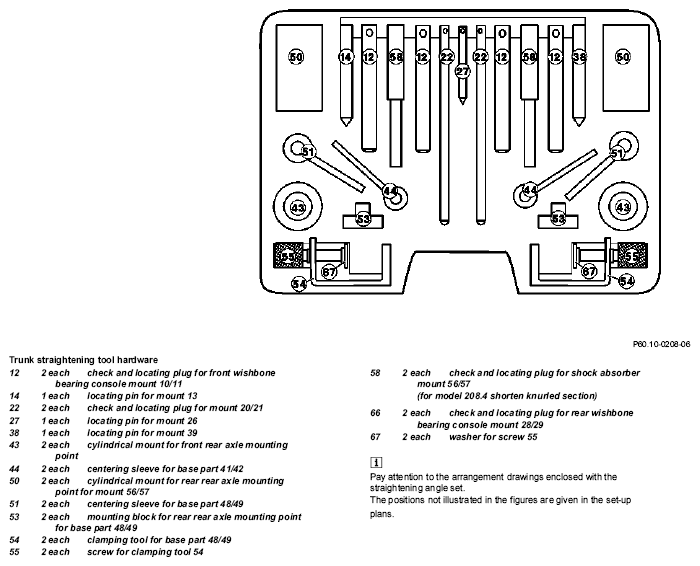

Pay attention to the arrangement drawings enclosed with the straightening tool set.

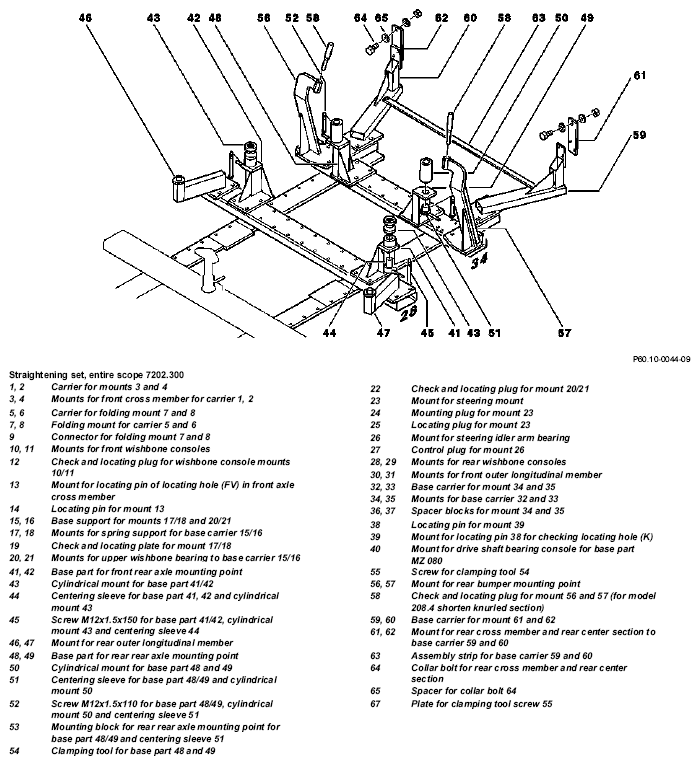

The positions illustrated in the figures are given in the set-up plans.
Shorten check and locating plug (58) approx. 50 mm on knurled side for model 208.4
Pay attention to the arrangement drawings enclosed with the straightening angle set.
The positions not illustrated in the figures are given in the set-up plans.
| Fig. item etc. | Work instructions | ||
|---|---|---|---|
| Observe set-up plans included with straightening set. | |||

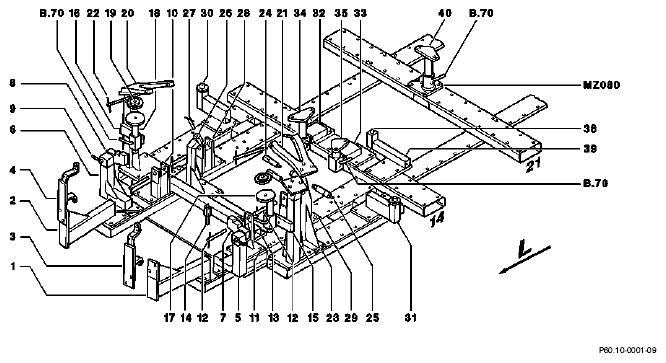

| Set up Celette straightening bracket set | Also use supplementary straightening set for engines 112, 113! See ↓ |
AR60.10-P-1100-01A | |
| Models 202, 208 with engines 112, 113 Celette supplemental straightening bracket set |
*WE58.40-Z-1012-01A | ||
| Model 208 Celette supplemental straightening bracket set |
*WE58.40-Z-1006-01A | ||
| Celette straightening bracket set models 208.4 Use additional supplementary straightening set on model 208.4! See ↓ |
*WE58.40-Z-1009-01E | ||
| models 208.4 Celette supplemental straightening bracket set |
*WE58.40-Z-1015-01A | ||
Tensioning chain on mount for longitudinal member |
*BA60.10-P-1001-01A |
| Number | Designation | models 202.0/1 | models 208.3/4 | |
|---|---|---|---|---|
| BA60.10-P-1001-01A | Tensioning chain on mount for longitudinal member | Nm | 50 | 50 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1007-06A | Reversible ratchet |
| WH58.30-Z-1026-06A | Screwdriver bit, 8 mm for hexagon socket head screws |
| WH58.30-Z-1002-11A | Double end box wrench, offset, 22 x 24 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1006-01A | Celette straightening bracket set 7208.309 (model C 208), as supplement to 7202.300 (model 202) |
| WE58.40-Z-1012-01A | Celette straightening bracket set 7202.309 (model 202, 208 with engine 112, 113), as supplement to 7202.300 (model 202) |
| WE58.40-Z-1015-01A | Celette straightening bracket set 7208.308 (model A 208), as supplement to 7202.300 (model 202), as well as 7208.309 (model C 208) |
| WE58.40-Z-1001-01E | Celette straightening bench |
| WE58.40-Z-1007-01E | Celette module crossmember set 955.940 |
| WE58.40-Z-1008-01E | Celette additional member 955.908 |
| WE58.40-Z-1009-01E | Celette straightening bracket set 7202.300 |
| WE58.40-Z-1008-03A | Pneumatic ratchet |
