Removing and installing tailgate hinge assembly - AR72.20-P-2560A
MODEL 202.07 /08 /18
| Removing, installing | |||
| 1 | Removing and installing tailgate | AR72.20-P-3500A | |
| 2 | Removing and installing roof frame trim | AR68.30-P-4470A | |

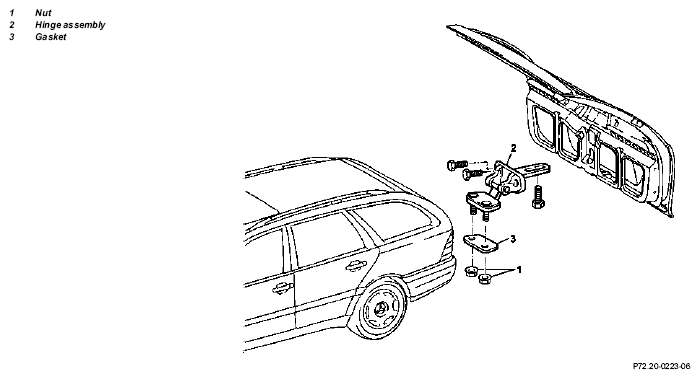

| 3 | Mark installation position of hinge assembly (2) on roof frame | ||
| 4 | Unscrew nut (1) and remove hinge (2) | *BA72.20-P-1001-02A | |
| 5 | Install in the reverse order | ||
| 6 | Adjust tailgate | AR72.20-P-3510A |
| Number | Designation | Model 202.07/08/18 | |
|---|---|---|---|
| BA72.20-P-1001-02A | Nuts securing hinge assembly to tailgate | Nm | 10 |
