Removing and installing exhaust system complete - AR49.10-P-7000B

ENGINE 604.912 in MODEL 210.004

ENGINE 605.912 in MODEL 210.010

ENGINE 606.912 in MODEL 210.020

ENGINE 111.942 in MODEL 210.035

ENGINE 111.970 in MODEL 210.037

ENGINE 111.947 in MODEL 210.045

ENGINE 104.945 in MODEL 210.053

ENGINE 104.995 in MODEL 210.055 with CODE (957a) AMG engineering package

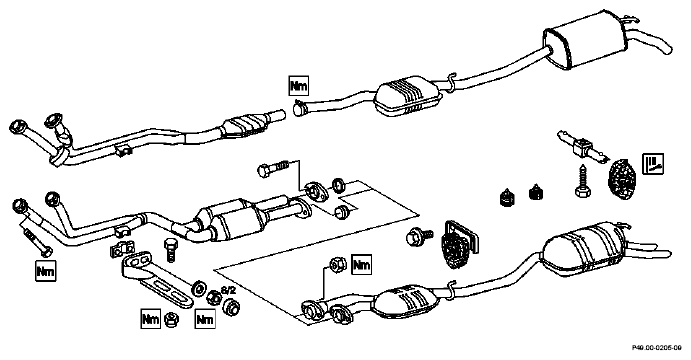

Fig 1: Identifying Exhaust System Complete Components - Shown On Engine 104

Shown on Engine 104

Figure item, etc.	Work instructions
	Plug connection for O₂ -sensor	Only Motor 104	AR14.00-P-5303D
	Rivet nuts in the exhaust manifold	replace if necessary	AR49.10-P-5531-01DA
	Flange connection of exhaust manifold or front exhaust pipes	Install not under tension
		Engine 104, 111	*BA14.10-P-1002-01B
		Engine 604, 605, 606	*BA14.10-P-1002-01A
	Guidelines concerning the installed position and suspension mount for the rear silencer	Typ 210.055 E 36 AMG	AH49.10-P-1000-02B
	Support, exhaust bracket to transmission		*BA49.10-P-1002-01B
	Hooked wrench for rubber mount		*WH58.30-Z-1001-19A
8/2	Nuts, exhaust bracket to tapping plate on front exhaust pipe	replace
			*BA49.10-P-1001-01B
	Notes on disposing of catalytic converters	Vehicles with catalytic converter system code 620a	OS49.10-P-1000-01A

EXHAUST MANIFOLD

Number	Designation		Engine 604/605 606.91/961/962
BA14.10-P-1002-01A	Flange connection of exhaust manifold or front exhaust pipes	Nm	25

EXHAUST MANIFOLD

Number	Designation		Engine 104	Engine 111.920/921/940/941/942/943/944/945/946/947/960/961/970/973/974/975/977
BA14.10-P-1001-01B	Nut to exhaust manifold	Nm	-	-
BA14.10-P-1002-01B	Flange connection of exhaust manifold or front exhaust pipes	Nm	20	20
BA14.10-P-1003-01B	Bolt to exhaust manifold	Nm	-	-

EXHAUST SYSTEM

Number	Designation		Engine Series 604, 605, 606 except 606.964
BA49.10-P-1001-01B	Nut of exhaust bracket to socket flange on front exhaust pipe	Nm	20
BA49.10-P-1002-01B	Support, exhaust bracket to transmission	Nm	20

Fig 2: Identifying Cocking Bolt (103 589 01 39 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-19A	Hook wrench, Firma Hazet
