Removing and installing exhaust system complete - AR49.10-P-7000AU

ENGINE 112.910 in MODELS 202.026 /086

ENGINE 112.920 in MODELS 202.029 /089

ENGINE 112.940 in MODELS 208.365 /465

ENGINE 113.944 in MODELS 202.033 /093

ENGINE 113.943 in MODELS 208.370 /470

ENGINE 113.984 in MODEL 208.374

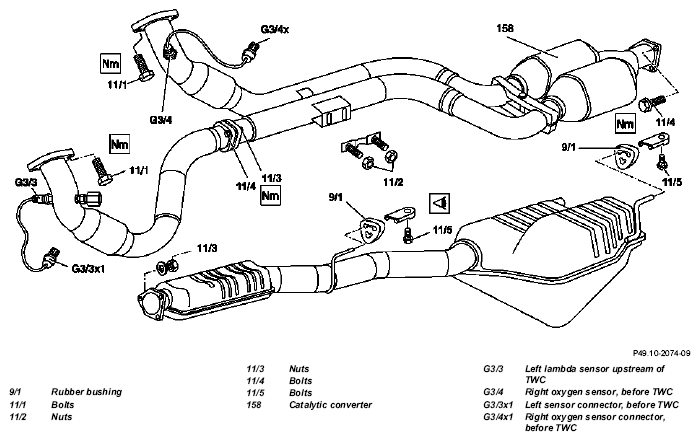

Fig 1: Identifying Exhaust System Remove/Install Components - Shown On Model 208 With Engine 112.940

Shown on model 208 with engine 112.940

	Remove/install
		On model 202.033/093, 208.374 with engines 113.944, 113.984, note the greater shore hardness of the rubber mounts (9/1)!
1	Disconnect plug connection of left and right O2 sensors upstream of TWC (G3/3x1, G3/4x1)		AR14.00-P-5303A
2	Unscrew bolts (11/1) at flange connection between front exhaust system / exhaust manifold	If bolts are sluggish or thread is damaged: ↓
		Replace rivet nuts in exhaust manifold.	AR49.10-P-5531-01DA
			*BA14.10-P-1002-01B
3	Unscrew nuts (11/2) on bracket	Replace nuts
4	Unscrew bolts (11/5) on the suspension of the rear exhaust system	Check the rubber mounts (9/1) for damage, replace if necessary.
5	Lift out exhaust system complete	Installation:  Install the exhaust system free of stress, loosen bolts (11/4) if necessary.
			*BA49.10-P-1002-01A
6	Install in the reverse order
