Remove/install the oxygen sensor - AR14.00-P-5303A

ENGINE 112.910 in MODELS 202.026 /086

ENGINE 112.920 in MODELS 202.029 /089

ENGINE 112.940 in MODELS 208.365 /465

ENGINE 112.921 in MODELS 210.063 /263 /081 /281

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 113.940 in MODELS 210.070 /270

ENGINE 113.980 in MODELS 210.074 /274

ENGINE 113.944 in MODELS 202.033 /093

ENGINE 113.943 in MODELS 208.370 /470

ENGINE 113.984 in MODEL 208.374

Model 202/208

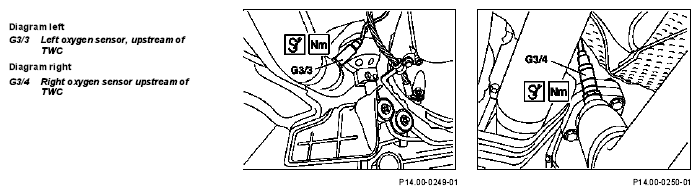

Fig 1: Identifying Oxygen Sensor Components - Model 202/208 (1 Of 3)

Model 202/208

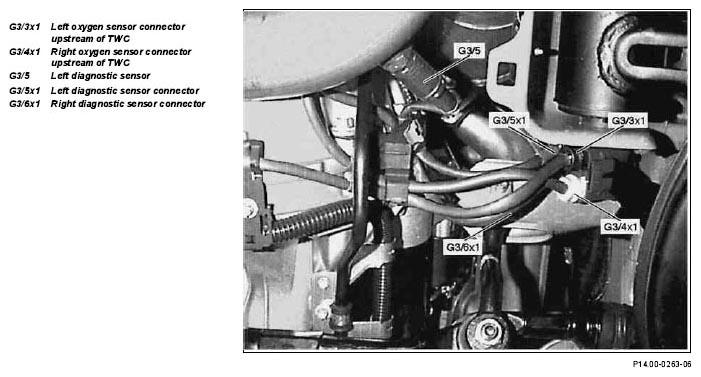

Fig 2: Identifying Oxygen Sensor Components - Model 202/208 (2 Of 3)

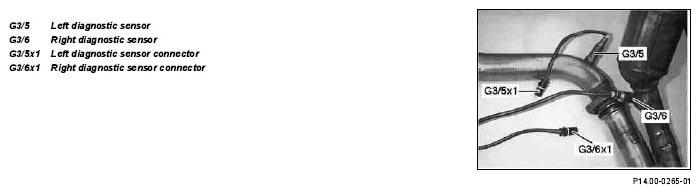

Location of diagnostic sensors, Model 202/208

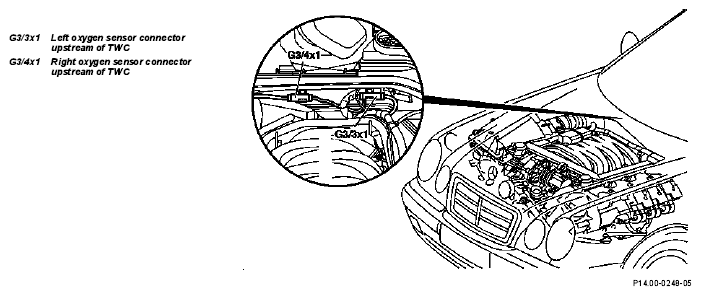

Fig 3: Identifying Oxygen Sensor Components - Model 202/208 (3 Of 3)

Shows model 210.081/082

Fig 4: Identifying Oxygen Sensor Components - Shows Model 210.081/082

Illustration is model 210.063/263/065/265/281/282

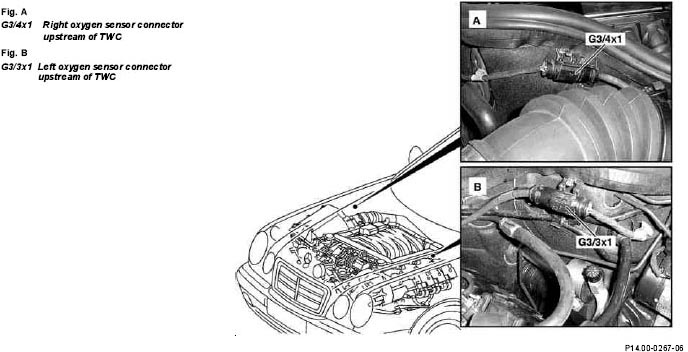

Fig 5: Identifying Oxygen Sensor Components - Model 210.063/263/065/265/281/282

Models 210.070/074/270/274

Fig 6: Identifying Oxygen Sensor Components - Models 210.070/074/270/274

Modification notes

10.11.04

Value changed from 55 Nm to 45 Nm

Value in series 1001 for engine 112.910/911/912/913/914/915/916/920/921/922/923/940/941/942/943/944/945/946/947/949/953/955/960/961/970/972/973/975

Fig. item, etc.	Work instructions
G3/3x1, G3/4x1	Plug connection
G3/3, G3/4	Oxygen sensor	Installation: Coat thread on oxygen sensor with heat-resistant lubricant.	*BR00.45-Z-1005-06A
			*BA14.00-P-1001-01A
			Fig 7

O2 sensor

Number	Designation		Engines 112.910/911/912/913/914/915/916/920/921/922/923/940/941/942/943/944/945/946/947/949/953/955/960/961/970/972/973/975	Engines 113.940/941/942/943/944/945/946/948/960/961/962/963/964/965/966/967/968/980/981/982/984/986/992/993/995
BA14.00-P-1001-01A	O₂ sensor on exhaust pipe/exhaust Manifold	Nm	45	55

Fig 7: Identifying Ring Wrench Socket (000 589 71 03 00)

Repair materials

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste	A 000 989 76 51
