Removing and installing exhaust system complete - AR49.10-P-7000A

ENGINE 112.921 in MODELS 210.063 /263 /081 /281

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 113.940 in MODELS 210.070 /270

ENGINE 113.980 in MODELS 210.074 /274

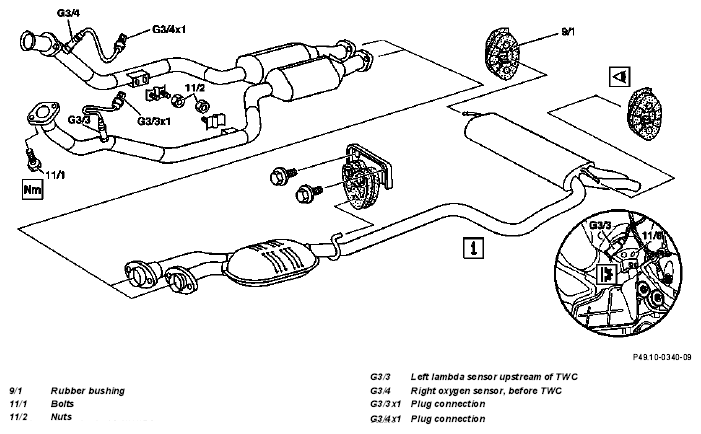

Fig 1: Identifying Exhaust System Complete Components - Model 210.063

Illustrated on model 210.063

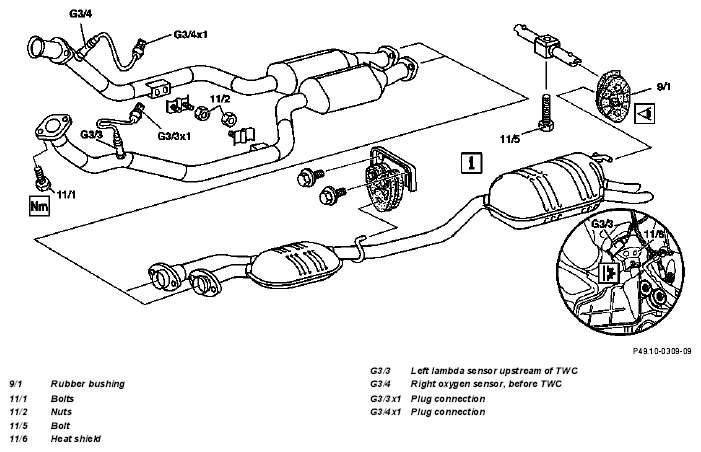

Fig 2: Identifying Exhaust System Complete Components - Model 210.270

Illustrated on model 210.270

	Remove/install
		On model 210.074074/274/, 274 with engine 113.980; note the larger shore hardness of rubber mounts (9/1)!
1	Disconnect plug connection for left and right O2 sensors upstream of TWC (G3/3x1, G3/4x1)		AR14.00-P-5303A
2.1	Detach front axle torsion bar from longitudinal frame member and swivel torsion bar downwards	Models 210.063/263/065/265 Replace bolts.
			*BA32.20-P-1001-02D
			*BA32.20-P-1002-02D
3	Unscrew bolts (11/1) at flange connection between front exhaust system / exhaust manifold	If bolts are sluggish or thread is damaged: ↓
		Replace rivet nuts in exhaust manifold.	AR49.10-P-5531-01DA
			*BA14.10-P-1002-01B
4	Unscrew nuts (11/2) on bracket	Replace nuts
5.1	Unbolt bolt (11/5) for suspension on downstream exhaust system	Models 210.063/065/070/074
5.2	Unhook rear exhaust system from rubber mount (9/1)	Models 210.265/263/270/282/274 Inspect rubber mount (9/1) for damage, replace if necessary.
6	Lift out exhaust system complete	Ensure that the heat shield (11/6) is not damaged when removing or installing the support.
7	Install in the reverse order	Install exhaust system free of stress.

EXHAUST MANIFOLD

FRONT AXLE STABILIZER BAR
