Remove / install exhaust system from flange connection - AR49.10-P-7280FA
ENGINE 104.943 /991, 119.97, 120.98 in MODEL 129
  |
Remove/install |
|
|
| 1 |

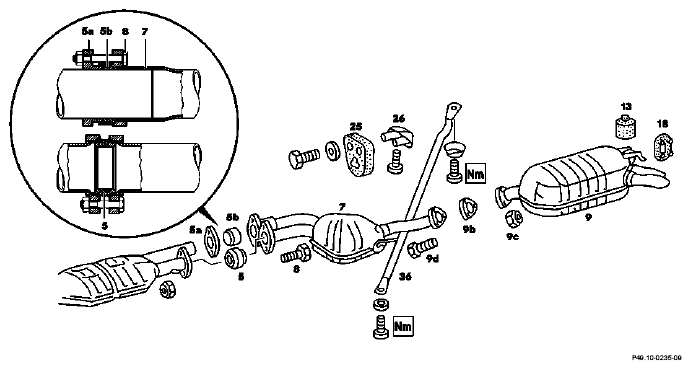

Disconnect bolted connection (9c, 9d) |
 |
*BA49.10-P-1002-01A |
| 2 |
Replace 3-hole full face gasket (9b) |
Pay attention to the correct installation position! |
|
| 3 |
Unhook rear muffler (9) from rubber ring (18) |
|
*WH58.30-Z-1001-19A |
| 4 |
Remove left frame cross strut (36). |
Replace self-locking screws |
*BA61.10-P-1001-01A |
| 5 |
Disconnect bolted connection (8) |
|
*BA49.10-P-1002-01A |
| 6 |
Detach suspension plate (25) and clamping plate (26) |
|
|
| 7 |
Remove center muffler (7) |
|
|
 |
Checking |
|
|
| 8 |
Check centered seal (5), flange (5a), graphite sealing ring (5b) for reusability |
Replace if necessary. Pay attention to the correct installation position! |
|
| 9 |
Check suspension plate (25), rubber buffer (13) and rubber ring (18) |
Replace, if necessary. |
|
| 10 |
Install in the reverse order |
|
|
EXHAUST SYSTEM
| Number |
Designation |
Engine 104, 120 |
Engine 119 |
| BA49.10-P-1002-01A |
Bolt, flange connection to exhaust pipe |
Nm |
20 |
20 |
FRAME FLOOR ASSEMBLY
| Number |
Designation |
Model 129 |
| BA61.10-P-1001-01A |
Self-locking bolt connecting rear cross strut to frame floor |
Nm |
120 |
COMMERCIALLY AVAILABLE TOOLS
| Number |
Designation |
| WH58.30-Z-1001-19A |
Hook wrench, Firma Hazet |
