Removing and installing exhaust system complete - AR49.10-P-7000SV

ENGINE 112.947 in MODEL 170.465

ENGINE 112.960 in MODEL 170.466

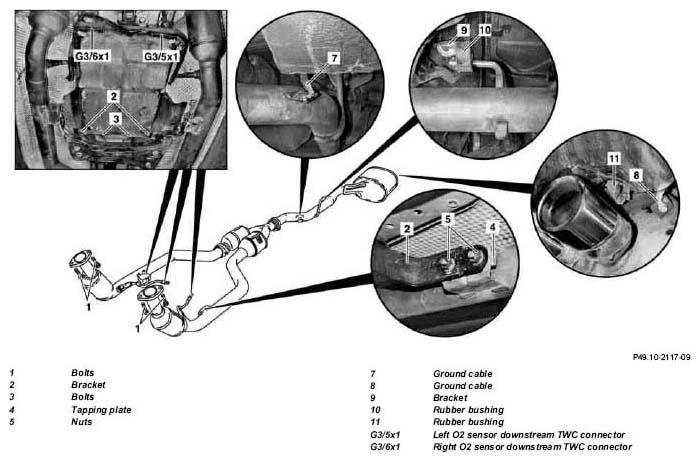

Fig 1: Identifying Complete Exhaust System Remove/Install Components - Engine 112.947 In Model 170.465 & Engine 112.960 In Model 170.466
G04713955

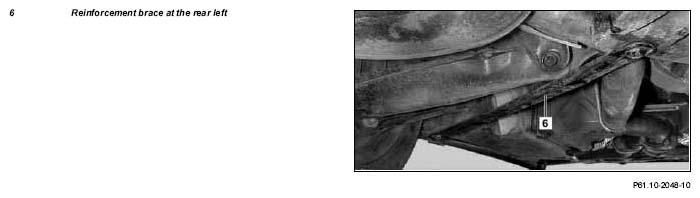

Fig 2: Identifying Reinforcement Brace - Engine 112.947 In Model 170.465 & Engine 112.960 In Model 170.466
G04713956
REMOVINGINSTALLING Remove/install
1 Remove engine compartment paneling   AR61.20-P-1105A
2 Separate plug connectors (G3/5x1, G3/6x1) of sensors (downstream of TWC) IMPORTANT Press the plug connectors out of the brackets.
3 Detach front exhaust system/catalytic converter at exhaust manifold NOTESInstallation:  Install new bolts (1). Check rivet nuts in exhaust manifold and replace if necessary. ↓
    Replace rivet nuts in exhaust manifold. AR49.10-P-5531-01DA
    TORQUE SPECIFICATION BA14.10-P-1002-01B
4 Support exhaust system
5 Detach bracket (2) of exhaust system at transmission IMPORTANT Slacken bolts (3) for this step.
    TORQUE SPECIFICATION *BA49.10-P-1007-01A
6 Detach bracket (2) at front exhaust system/right and left catalytic converter NOTESInstallation:  Check tapping plates (4); replace if necessary. Replace nuts (5).
    TORQUE SPECIFICATION *BA49.10-P-1008-01A
7 Push together bracket (2)
8 Remove reinforcement brace (6) at the rear left
9 Remove ground lines (7, 8) on rear exhaust system NOTESInstallation:  Check ground lines; replace if necessary.
10 Remove bracket (9) for exhaust system on the underbody TORQUE SPECIFICATION *BA49.10-P-1010-01A
11 Remove rubber mount (11) for exhaust system on underbody
12 Remove complete exhaust system NOTESInstallation:  Check bracket (9) and rubber mount (10, 11); replace if necessary. Install exhaust system free of stress.
REFER TO FORMS Notes on disposing of catalytic converters Vehicles with three-way catalytic converter code 620a OS49.10-P-1000-01A
13 Install in the reverse order
TORQUE SPECIFICATION EXHAUST MANIFOLD

Number Designation Engine 112 except 112.951/976
BA14.10-P-1002-01B Flange connection, exhaust manifold and front exhaust pipes Nm 20
TORQUE SPECIFICATION EXHAUST SYSTEM

Number Designation Engine 112 in model 170
BA49.10-P-1007-01A Bolt of exhaust bracket to transmission Nm 20
BA49.10-P-1008-01A Self-locking nut to front exhaust pipe Nm 20
BA49.10-P-1010-01A Bolt securing exhaust system to under-floor Nm 20
