Removing and installing intermediate shaft and replacing deepgroove ball bearing - AR33.30-P-0625A

MODEL 210.08 /28

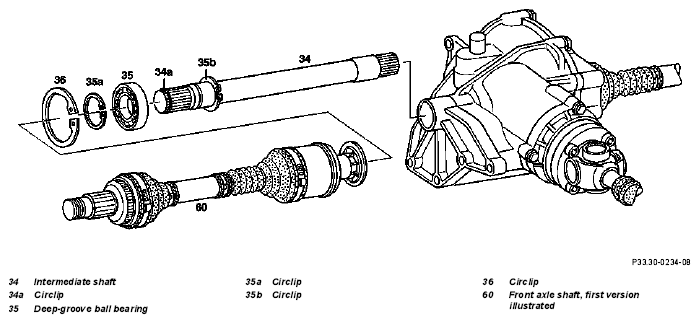

Fig 1: Identifying Intermediate Shaft And Replacing Deepgroove Ball Bearing Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove left front axle shaft (60)		AR33.30-P-0620A
2	Remove circlip (36)	Installation:  Ensure correct seating	AR33.30-P-0625-01A
			*WH58.30-Z-1009-02A
3	Withdraw intermediate shaft (34) from oil pan
4	Replace deep-groove ball bearing (35)		AR33.30-P-0625-02A
			Figure
5	Check circlip (34a) and replace if necessary
6	Install in reverse order

Fig 2: Identifying Two-Arm Puller (000 589 88 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Commercially available tools

Number	Designation
WH58.30-Z-1009-02A	Pliers for circlip, inner
