Remove/install poly-V belt tensioning device - AR13.25-P-3200B

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODEL 129, 163, 211.061 /261 /065/265

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 (except 113.965/981) in MODEL 129, 163, 202, 208, 210, 211.070/270

ENGINE 113.982 in MODEL 463.243/246

Shown on engine 112

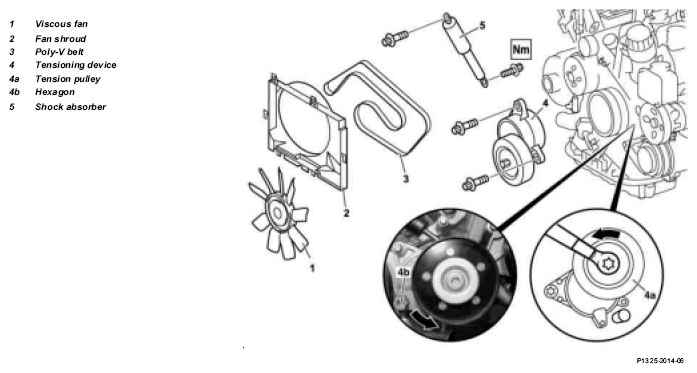

Fig 1: Identifying Poly-V Belt Tensioning Device Components - Shown On Engine 112 (1 Of 2)

	Remove/install
1	Remove viscous fan (1)	Except model 211 Right-hand thread!	AR20.40-P-5660C
2	Remove fan shroud (2).	Except model 211 On model 163, unscrew bolts at bottom of fan shroud. Model 129, 163, 202, 208, 210
		Model 463	AR20.40-P-6800V
3	Remove poly-V belt (3)	Except model 211	AR13.22-P-1202B
		Model 211	AR13.22-P-1202PV
4.1	Rotate the tensioner pulley (4a) in the anti-clockwise direction and lock	Except model 211 Lock tensioner pulley with drift or pin (diameter 5 mm).
4.2	Rotate tensioning device at hexagon (4b) in an anti-clockwise direction and lock	Model 211 Lock tensioning device with a drift or pin (diameter 5 mm).
5	Remove shock absorber (5) on coolant pump	Model 129, 202, 210, 211 with engine 112 and manual transmission
			*BA13.25-P-1004-01M
6	Remove tensioning device (4)	Engine 112	*BA13.25-P-1001-01M
		Engine 113	*BA13.25-P-1001-01D
7	Remove shock absorber (5) from clamping device (4)	Model 129, 202, 210, 211 with engine 112 and manual transmission
			*BA13.25-P-1003-01M
8	Install in the reverse order

Belt tensioning device

Belt tensioning device
