Removing and installing injection timing device - AR07.12-P-8014H

ENGINE 605.910 /912 /960 /962, 606.912 /961 /962 /964

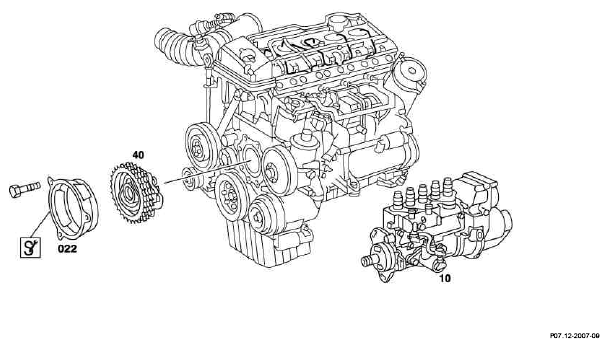

Fig 1: Identifying Injection Timing Device

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove injection pump (10)		AR07.12-P-8410H
2	Remove centering sleeve (022)		Fig 2
3	Pull out injection timing device (40)
4	Install in the reverse order

Fig 2: Identifying Centering Sleeve (601 589 05 14 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
