Remove, install crankshaft position sensor - AR15.12-P-2133GA

ENGINE 111.977 in MODEL 163

ENGINE 111.943/946/973 in MODEL 170

ENGINE 111.921 /945 /974 in MODEL 202

ENGINE 111.945 /975 in MODEL 208

ENGINE 104.945 /995, 111.942 /947 /970 in MODEL 210

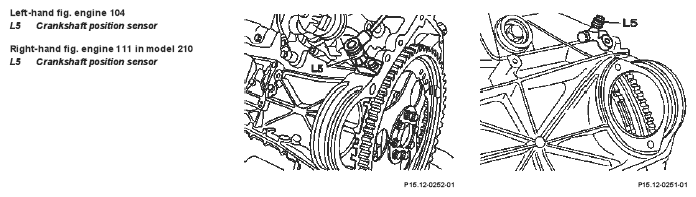

Fig 1: Identifying Crankshaft Position Sensor (Engine 104 And 111)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 111 in model 163, 170, 202, 208

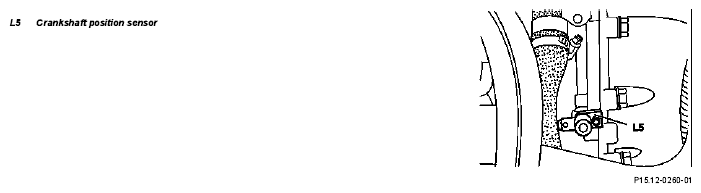

Fig 2: Identifying Crankshaft Position Sensor (Engine 111 In Model 163, 170, 202, 208)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item, etc.	Work instructions
	Remove	starter.
		Engine 111 in model 163	AR15.30-P-7100GI
		Engine 111 in model 170	AR15.30-P-7100G
		Engine 111 in model 202, 208	AR15.30-P-7100EA
		Engine 104, 111 in model 210	AR15.30-P-7100F
L5	Crankshaft position sensor
		Perform re-initializing of ME control module Re-initializing must only be performed with Star Diagnosis in the menu point "Control module adaptation" if the crankshaft position sensor has been replaced.
