Removing and installing starter - AR15.30-P-7100F

ENGINE 111.942 in MODEL 210.035 /235

ENGINE 111.970 in MODEL 210.037/237

ENGINE 111.947 in MODEL 210.045 /245

ENGINE 104.945 in MODEL 210.053

ENGINE 104.995 in MODEL 210.055

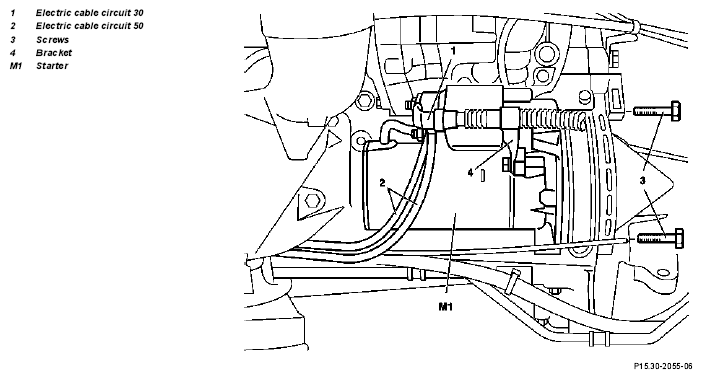

Fig 1: Identifying Starter Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries.	No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground cable of battery	Insulate cable lug of ground cable as protection against unintentional contact of the disconnected ground cable with ground point W10	AR54.10-P-0003A
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove bottom engine compartment panel		AR61.20-P-1105AB
3	Disconnect electric cables (1, 2)	Nut of connection circuit 30	*BA15.30-P-1001-01A
		Nut of connection circuit 50	*BA15.30-P-1002-01A
4	Remove bracket (4)
5	Unscrew screws (3)	Bolt of starter	*BA15.30-P-1003-01A
6	Take starter (M1) down and out
7	Install in the reverse order
8	Carry out operational check
9	Render electrical system operational	Perform basic programming.	AR00.19-P-0200D

Starter
