Removing, installing valve springs and/or valve stem seals - AR05.30-P-3500HA

ENGINE 605, 606.910 in MODEL 124

ENGINE 606.961 in MODEL 140

ENGINE 604, 605 in MODEL 202

ENGINE 604, 605, 606.912 /962 in MODEL 210

ENGINE 606.964 in MODEL 463

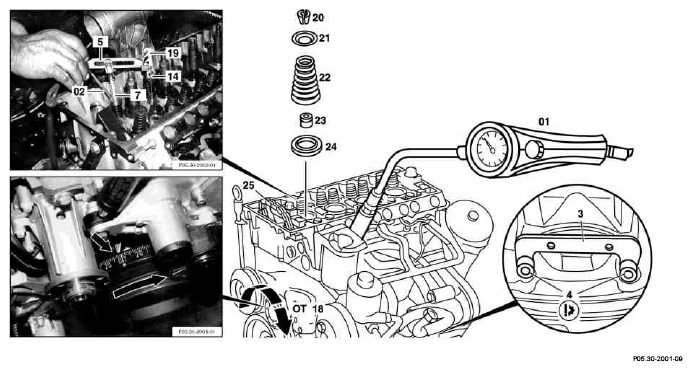

Fig 1: Identifying Valve Springs And Valve Stem Seals Components

	Removing, installing
1	Remove camshaft housing		AR05.20-P-6995HA
2	Attach graduated scale to vibration damper	Attach graduated scale in pin at vibration damper
	Graduated scale for vibration damper		WF58.50-P-0330-03A
3	Install assembly tool for valves at cylinder head	To do this, screw retaining fork (14) (M7x60) with hinged fork (19) into hole of camshaft housing attachment at cylinder head
4	Rotate piston of cylinder to be tested to TDC	Rotage engine at crankshaft; hold timing chain (25) up for this step so that it does not jam. Piston at "TDC" in the case of marking index on vibration of Engine 604 TDC cylinders 1 and 4, 180° cylinders 2 and 3 Engine 605 TDC cylinder 1, 72° cylinder 2, 144° cylinder 4, 216° cylinder 5, 288° cylinder 3 Engine 606 TDC cylinders 1 and 6 120° cylinders 2 and 4 240° cylinders 3 and 5 Installation: ensure that the colored markings on timing chain and camshaft sprocket are again aligned after installing the camshafts.
5	Install retaining lock (3) for crankshaft / ring gear	According to TDC setting of cylinder to be tested to prevent crankshaft or piston being turned on Use bolts (4) M6x90 otherwise the threads in the rear end cover will be damaged	AR03.30-P-5000HA
6	Connect cylinder leaktightness tester (01) to the cylinder to be tested	Pressurize cylinder to approx. 5 bar	AR01.00-P-1300-01HA
		Connector	Fig 2
		Connector	Fig 2
		Connector	Fig 4
		Cylinder leaktightness tester	*WH58.30-Z-1015-05A
		Connection M22x1.5 mm / R1/4" for injection nozzle	*WH58.30-Z-1002-05A
7	Remove valve springs (22)	Attach detent depresser (5) with lever handle and thrust piece (7) into hinged bearing (19) for this step. Align thrust piece (7) vertically to valve spring (22). Compress valve spring (22) and remove valve collets (20) with magnetic pin, magnetic finger or tweezers. Valves must not strike the piston crown
		Magnetic pin (02)	Fig 7
		Magnetic finger	Figure
		Tweezers	*WH58.30-Z-1040-02A
8	Remove valve stem seals (23) with pliers	Inspect valve stems for burrs, deburr if necessary. Inspect bottom valve spring retainer (24) for pitting, replace if necessary.
		Pliers Installation: oil valve stem seals. Press on valve stem seals with assembly drift by hand	Figure
		Assembly drift	Fig 9
9	Install in the reverse order

Fig 2: Identifying Connector (604 589 00 63 00)

Fig 3: Identifying Connector (602 589 00 63 00)

Fig 4: Identifying Adapter (602 589 00 25 00)

Fig 5: Identifying Valve Assembly Tools Case (111 589 25 61 00)

Fig 6: Identifying Magnetic Finger (116 589 06 63 00)

Fig 7: Identifying Magnetic Pin (210 589 00 40 00)

Fig 8: Identifying Pliers (606 589 00 37 00)

Fig 9: Identifying Drift (604 589 00 43 00)

Commercially available tools

Number	Designation
WH58.30-Z-1040-02A	Tweezers, straight 160 mm with rounded tips
WH58.30-Z-1002-05A	Connection M22x1.5mm/ R1/4" for injection nozzle	604 589 06 63 00
WH58.30-Z-1015-05A	Cylinder leakage testing unit
