Raise engine - AR01.10-P-7500-03B

Fig 1: Identifying (140 589 01 61 00) Engine Support Bracket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying (210 589 00 61 00) Support For Engine Support Bracket (2 Ea.)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

For 8-cylinder engines

1. Insert suitable bolts from below left and right into the shock absorber mount
2. Push on shock absorber rubber mount above with plate and screw on nut.
3. Attach support brace at the rear to engine support rack (065).
4. Place engine support rack (065) in position.

   Ensure that no cables and hose are damaged.

5. Lift engine.

   Hook in the hook into engine lifting eyes to do this.

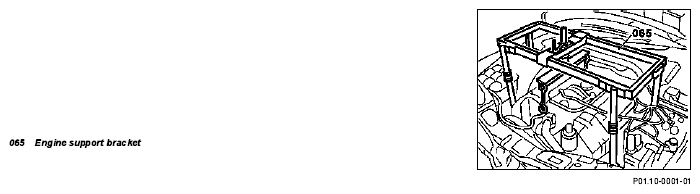

   Fig 3: Identifying Engine Support Rack Position - For 8-Cylinder Engines

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

For 6-cylinder engines

1. Insert suitable bolts from below left and right into the shock absorber mount.
2. Push on shock absorber rubber mount above with plate and screw on nut.
3. Attach support brace at the rear to engine support rack (065).
4. Place engine support rack (065) in position.

   Ensure that no cables and hose are damaged.

5. Fix shackle with chain on the second support bar hole from the front. If necessary bring the hole about 180 mm (dimension X) from the front to the same height as the first hole with a 16 mm diameter.
6. Fix engine at the rear using a suitable chain (tensile loading) via the engine suspension lugs and the shackle to the support bar and lift engine.

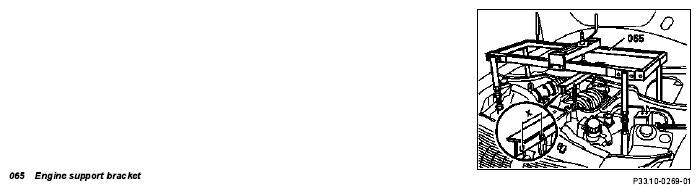

   Fig 4: Identifying Engine Support Rack Position - For 6-Cylinder Engines

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
