Remove/install right engine support - AR22.10-P-4340GV

ENGINE 112 in MODEL 210.061 /063 /065 /261 /263 /265 /663

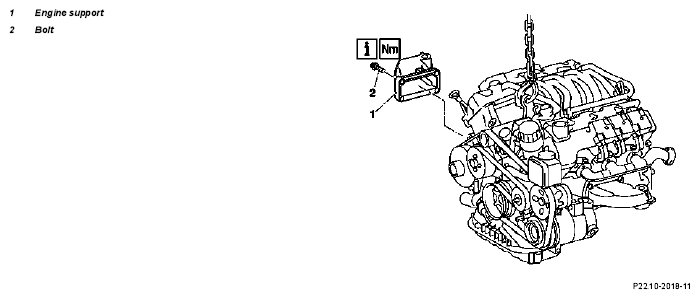

Fig 1: Identifying Right Engine Support Components (Engine 112)

	Remove/install
1	Remove engine mounts		AR22.10-P-1100GV
2	Unscrew engine support (1) from crankcase	Screws (2) must be used only once.
			*BA22.10-P-1005-01L
			Figure
3	Remove engine support (1)	Installation: There must not be any electric cables jammed in between engine support and crankcase.
4	Install in the reverse order

Engine mounts, engine supports

Number	Designation			Engine 112.911/914/921/941, 113.940/980 in model 210.061/062/ 063/065/070/074/261/ 262/263/265/270/274
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 2	∠ °	90

Fig 2: Identifying External Torx Set (001 589 76 09 00)
