Remove/install engine mount - AR22.10-P-1100GV

ENGINE 112 in MODEL 210.061 /063 /065 /261 /263 /265 /663

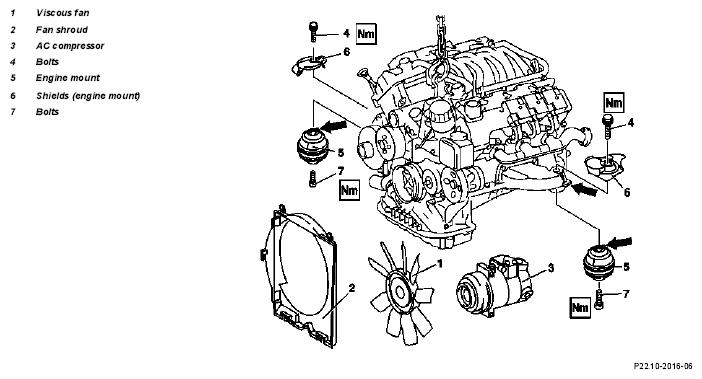

Fig 1: Identifying Engine Mount Components (Engine 112)

G04632327

	Remove/install
1	Remove engine trim panel
2	Disconnect/connect battery's ground cable	Only necessary if the right engine mount is removed. Installation: After connecting, read fault memory, encode radio and normalize power windows. Vehicles with stationary heater: Adjust time display on stationary heater.	AR54.10-P-0003A
3	Remove viscous fan (1)	Only necessary if the left engine mount is removed.	AR20.40-P-5660C
4	Remove fan shroud (2).	Only necessary if the left engine mount is removed.
5	Take off poly V-belt	Only necessary if the left engine mount is removed.	AR13.22-P-1202BA
6	Put on engine support bracket		AR01.10-P-7500-03B
7	Remove engine panel		AR61.20-P-1105AB
8	Unbolt AC compressor (3)	Only necessary if the left engine mount is removed. Do not disconnect refrigerant lines of the AC compressor.
			*BA83.55-P-1001-01A
9	Unscrew bolts (4) connecting engine mount (5) to engine support		*BA22.10-P-1004-01L
			Figure
10	Remove shields (6)	Installation: The notches in the shields must fit in the antitwist locks of the engine supports.
11	Raise engine	Ensure that the rear of the engine does not touch the body! Do not overstretch coolant hoses!
12	Unscrew bolts (7) connecting engine mount (5) to front axle carrier		*BA22.10-P-1001-01L
13	Remove engine mount (5)	Installation: The anti-twist locks (arrows) at the engine mounts (5) must fit in the retaining grooves (arrows) of the engine supports.
	Environmental protection regulations for disposal of engine mounts	Dispose engine mounts into mixed scrap.
14	Install in the reverse order
15	Read out fault memory and erase	Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work.↓ Diagnosis Manual Volume 2, Index 0: Connecting and using test equipment

TORQUE SPECIFICATION

Engine mounts, engine supports

Number	Designation		Engine 112.911/914/921/941, 113.940/980 in model 210.061/062/ 063/065/070/074/261/ 262/263/265/270/274
BA22.10-P-1001-01L	Bolt, front engine mounts to front axle carrier	Nm	35
BA22.10-P-1004-01L	Bolt of front engine mount to engine support	Nm	55

TORQUE SPECIFICATION

Refrigerant compressor

Number	Designation		Engines 112.910/911/ 920/921/940/941, 113.940/943/944/980 /984 in models 202, 208, 210
BA83.55-P-1001-01A	Bolt, refrigerant compressor to bracket	Nm	20

Fig 2: Identifying Connecting Piece (112 589 00 16 00)

G04632328
