Remove/install left engine support - AR22.10-P-4350DV

ENGINE 113 in MODEL 210.070 /270

ENGINE 113.980 in MODEL 210.074 /274

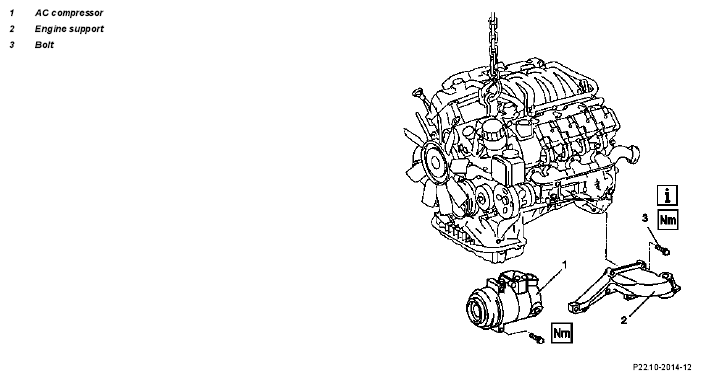

Fig 1: Identifying Left Engine Support Components (Engine 113)

G04632341

	Remove/install
1	Remove engine mounts		AR22.10-P-1100DV
2	Take off poly V-belt		AR13.22-P-1202B
3	Unbolt AC compressor (1)	Attach AC compressor at side in bottom of engine compartment with lines connected.
			*BA83.55-P-1001-01A
4	Unscrew engine support (2) from crankcase	Screws (3) must be used only once.
			*BA22.10-P-1005-01L
			Figure
5	Remove engine support (2)
6	Install in the reverse order

TORQUE SPECIFICATION

Engine mounts, engine supports

Number	Designation			Engine 112.911/914/921/941, 113.940/980 in model 210.061/062/ 063/065/070/074/261/ 262/263/265/270/274
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 2	∠ °	90

TORQUE SPECIFICATION

Refrigerant compressor

Number	Designation		Engines 112.910/911/ 920/921/940/941, 113.940/943/944/980 /984 in models 202, 208, 210
BA83.55-P-1001-01A	Bolt, refrigerant compressor to bracket	Nm	20

Fig 2: Identifying External Torx Set (001 589 76 09 00)

G04632342
