Remove/install engine mount - AR22.10-P-1100DV

ENGINE 113 in MODEL 210.070 /270 /074 /274

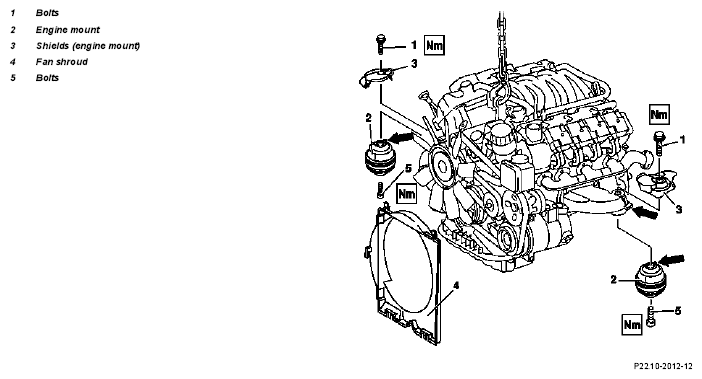

Fig 1: Identifying Engine Mount Components (Engine 113)

	Remove/install
1	Remove the middle engine paneling		AR61.20-P-1105AB
2	Unscrew bolts (1) connecting engine mount (2) to engine support		*BA22.10-P-1004-01L
			Figure
3	Remove shields (3)	Installation:  The notches in the shields must fit in the antitwist locks of the engine supports.
4	Remove engine cover or air filter	In model 210.074/274, the air filter is integrated in the engine cover. Remove engine trim panel or air filter by pulling it vertically up and off the cylinder head covers.
5	Remove fan shroud (4)	Visco fan must not be removed!
6	Put on engine support bracket		AR01.10-P-7500-03B
7	Raise engine	Ensure that the rear of the engine does not touch the body! Do not overstretch coolant hoses!
8	Unscrew bolts (5) connecting engine mount (2) to front axle carrier		*BA22.10-P-1001-01L
9	Remove engine mount (2)	Installation:  The anti-twist locks (arrows) at the engine mounts (2) must fit in the retaining grooves (arrows) of the engine supports.
	Environmental protection regulations for disposal of engine mounts	Dispose engine mounts into mixed scrap.
10	Install in the reverse order

Engine mounts, engine supports

Number	Designation		Engine 112.911/914/921/941, 113.940/980 in model 210.061/062/ 063/065/070/074/261/ 262/263/265/270/274
BA22.10-P-1001-01L	Bolt, front engine mounts to front axle carrier	Nm	35
BA22.10-P-1004-01L	Bolt of front engine mount to engine support	Nm	55

Fig 2: Identifying Connecting Piece (112 589 00 16 00)
