Remove, install left engine support - AR22.10-P-4350CV

ENGINE 112 in MODEL 210.081 /082 /281 /282

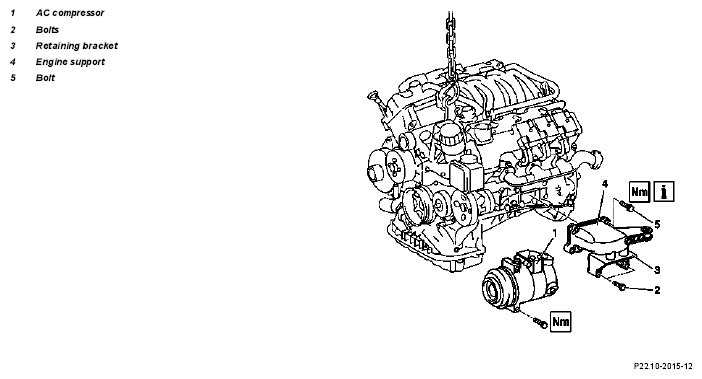

Fig 1: Identifying Left Engine Support Components (Engine 112)

	Remove/install
1	Remove engine mounts		AR22.10-P-1100CV
2	Remove poly V-belt		AR13.22-P-1202BA
3	Unbolt AC compressor (1)	Attach AC compressor at bottom in engine compartment with lines and cables connected.
			*BA83.55-P-1001-01A
4	Unscrew bolts (2) of retaining bracket (3) at oil pan
5	Unbolt engine support (4) at crankcase	Bolts (5) must be used only once.
			*BA22.10-P-1005-01L
			Figure
6	Remote engine support (4) together with retaining bracket (3)
7	Unbolt retaining bracket (3) of engine support (4)
8	Install in the reverse order

Engine mounts, engine supports

Number	Designation			Engines 112.921/941, 113.940 in models 210.081/082/083/281/282/283
BA22.10-P-1005-01L	Bolt of engine support to crankcase	1st stage	Nm	20
		Step 2	∠ °	90

Refrigerant compressor

Number	Designation		Engine 112.910/911/ 920/921/940/941, 113.940/943/944/980 /984 in model 202, 208, 210
BA83.55-P-1001-01A	Bolt of refrigerant compressor to bracket	Nm	20

Fig 2: Identifying External Torx Set (001 589 76 09 00)
