Remove/install exhaust manifold - AR14.10-P-3915H

ENGINE 604, 605.910 /912 /960 /962, 606.912 /961 /962 /964

Engine 605.910/912

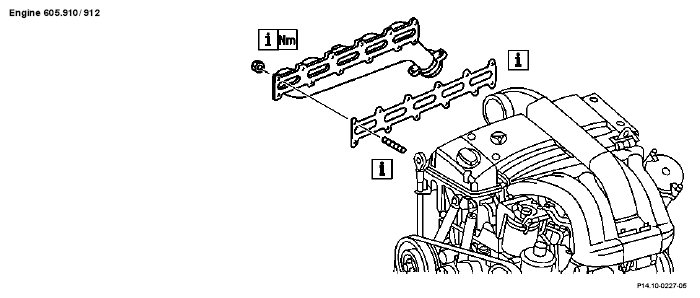

Fig 1: Identifying Exhaust Manifold - Engine 605.910/912

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 606.912

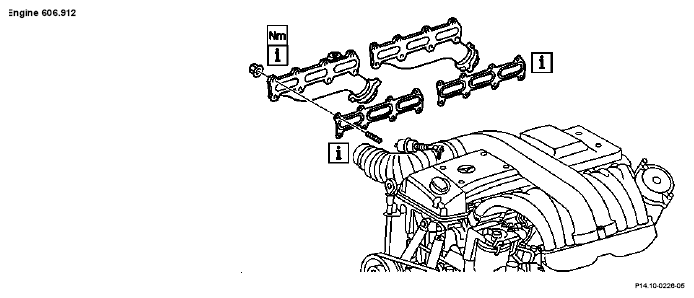

Fig 2: Identifying Exhaust Manifold - Engine 606.912

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 606.961/962/964

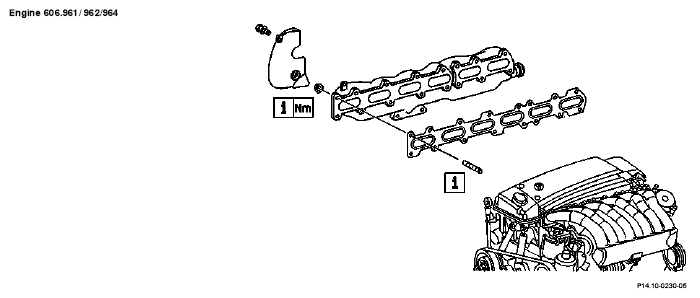

Fig 3: Identifying Exhaust Manifold - Engine 606.961/962/964

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Modification notes

5.11.96

Changed tightening torques of nuts on the exhaust manifold and flange connection on the exhaust manifold or front exhaust pipe

Work instructions
Gasket and nuts	replace
Remove, install turbocharger	Engines 605.960/962	AR09.40-P-6020H
	Engine 606.961/962	AR09.40-P-6020HA
	Engine 606.964	AR09.40-P-6020BD
Stud bolt	check, replace if necessary
Nut on exhaust manifold		*BA14.10-P-1001-01A
Exhaust manifold flange connection and front exhaust pipes		*BA14.10-P-1002-01A

Exhaust manifold

Number	Designation		Engine 602.982/983 606.964 611.960/961/962/981/983/987 612.961/962/963/965/966/967/981 613.960/961 628.960/962/963	Engine 604 605 606.91/961/962
BA14.10-P-1001-01A	Nut to exhaust manifold at cylinder head	Nm	30	30
BA14.10-P-1002-01A	Exhaust manifold flange connection and front exhaust pipes	Nm	-	25
