Removing and installing exhaust gas turbocharger - AR09.40-P-6020HA

ENGINE 606.961 in MODEL 140.135

ENGINE 606.962 in MODEL 210.025 /225

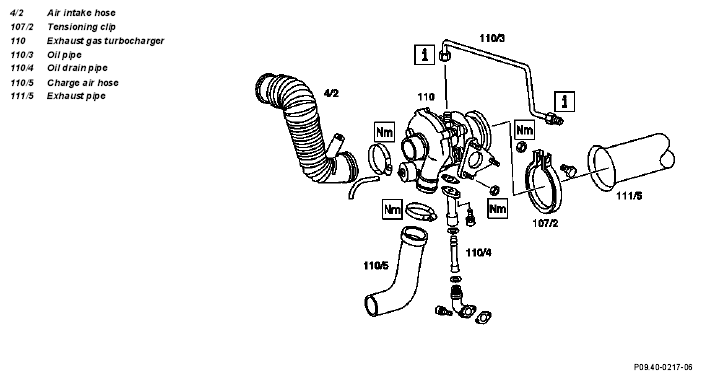

Fig 1: Identifying Exhaust Gas Turbocharger Components

	Removing, installing
1	Separate air intake hose (4/2) from turbocharger
2	Separate charge air hose (110/5) from turbocharger		*BA09.41-P-1002-01A
		Installing:  clean connection points with cleaning product. If the connection points are not cleaned, the charge air hoses and pipes may jump off during operation.  Attach charge air hose with spring segment - hose clips, see ↓	*BR00.45-Z-1004-04A
	Charge air hoses, intercooler with enlarged fit-on length		BT09.41-P-0001-01A
3	Remove tensioning clip		*BA09.40-P-1003-01A
4	Unbolt oil pipe (110/3) from turbocharger	Counter-hold with wrench when slackening
5	Slacken oil pipe (110/3) at engine block	Turn oil pipe away
6	Remove oil drain pipe (110/4)	Collect oil, replace gaskets, inspect O-rings, replace if necessary
7	Remove turbocharger (110)		*BA09.40-P-1002-01A
8	Thoroughly clean connection points of hose clips	If connection points are not cleaned, charge air hoses or pipes may jump off during operation
			*BA09.41-P-1002-01A
9	Install in the reverse order
10	Check oil level, adjust to correct level if necessary

Turbocharger
