Centering sleeve replacement - AR41.10-P-0200A

MODEL 210

Illustration shows front propeller shaft

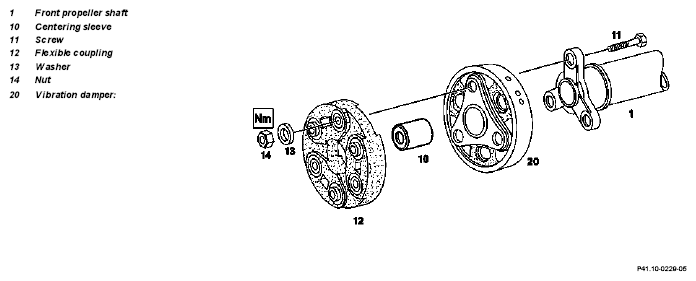

Fig 1: Identifying Centering Sleeve Components
G04624986Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove propeller shaft Vehicles with 5-speed manual and automatic transmission AR41.10-P-0050B
    Vehicles with 6-speed manual transmission AR41.10-P-0050BB
2 Label front and rear propeller shaft (12), and if necessary also vibration damper (20) in relation to three-arm flange and remove IMPORTANTInstallation:  Check flexible coupling for damage, replace if necessary.
NOTES Replace self-locking nuts.

    TORQUE SPECIFICATION Flexible coupling to front propeller shaft. *BA41.10-P-1001-01A
    TORQUE SPECIFICATION Flexible coupling to front propeller shaft. *BA41.10-P-1002-01A
3 Release guide sleeves in flexible couplings.   AR41.10-P-0050-09DA
REFER TO SHOP-MADE TOOLS Drift for releasing the guide sleeves in the flexible couplings   WF58.50-P-4110-01A
4 Remove front and rear flexible coupling (12)
5 Remove vibration damper (20) from front and rear propeller shaft IMPORTANT Front vibration damper: Model 210.003/004/010/015/017/035/037, 210.045/061/063/210/215/217/235, 210.237/245
210.261 except with automatic transmission
IMPORTANT Rear vibration damper: Model 210.216

    IMPORTANTInstallation:  Install vibration damper and propeller shaft according to labeling AR41.30-P-0100-01A
6 Separate front section of propeller shaft from rear section at the slide connection IMPORTANTInstallation:  Coat shaft splines with Molykote
grease: ↓

REFER TO CAPACITIES & SPECIFICATIONS   Long-life grease (NLGI grade 2) BB00.40-P-0266-02A
    Connect sections of propeller shaft AR41.10-P-0050-05DA
INSPECT Inspecting
7 Check centering sleeves (10) in the front and rear propeller shaft sections IMPORTANT If sealing lip in centering sleeve (10) is worn or damaged, the centering sleeve can be replaced separately.
8 Remove centering sleeve (10) IMPORTANT If necessary after testing.
IMPORTANTInstallation:  Press in centering sleeve (press-in distance of centering sleeve) see: ↓
AR41.10-P-0200-02DA
    Vehicles with 5-speed manual and automatic transmission AR41.10-P-0200-03A
    Vehicles with 6-speed manual transmission AR41.10-P-0200-03AJ
9 Fill recesses in both centering sleeves with grease FLUID SPECIFICATION *BF41.10-P-1001-01A
10 Install in the reverse order
TORQUE SPECIFICATION Propeller shaft

Number Designation Model 210
BA41.10-P-1001-01A Self-locking nut of flexible joint to transmission or front propeller shaft M10 Nm 40
M12 Nm 60
BA41.10-P-1002-01A Self-locking nut, flexible coupling to rear propeller shaft or rear axle center assembly M10 Nm 40
M12 Nm 60
FLUID SPECIFICATION Propeller shaft

Number Designation Model 210
BF41.10-P-1001-01A Grease quantity Propeller shaft centering sleeve g 6
Specifications for service products Sheet BB00.40-P-0267-00A
