Removing and installing fuse box in rear - AR54.15-P-1320A

MODEL 210

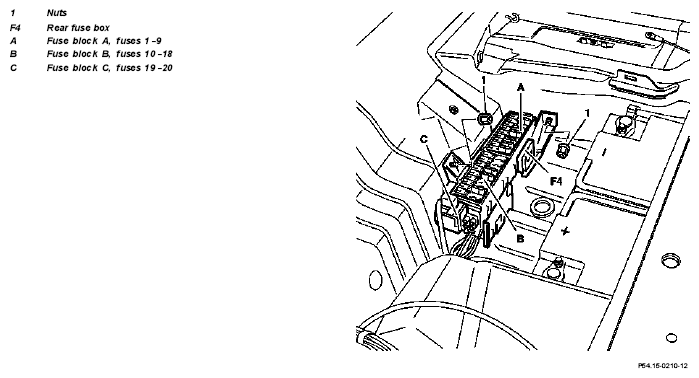

Fig 1: Identifying Rear Fuse Box Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1.1	Remove rear seat	Sedan	AR91.12-P-1700F
1.2	Fold rear seat forward and remove battery compartment cover	T-model
2	Disconnect ground cable from battery	Insulate cable terminal on ground lead for protection against unintentional contact between disconnected ground lead and ground connection point W10	AR54.10-P-0003A
3	Unclip fuse blocks (A, B and C)
4	Unscrew nuts (1)
5	Remove rear fuse box (F4)	For this purpose guide fuse blocks (A and B) downward out of fuse box
6	Disconnect leads on fuse boxes or fuse blocks	Disconnect leads only when changing entire fuse box. To avoid mix-ups bind disconnected leads for individual fuse blocks together and mark.	AR54.15-P-1255-01EB
	Connect leads on fuse boxes or fuse blocks		AR54.15-P-1255-02EB
	Fuse block assignment and lead connections	Model 210	GF54.15-P-1255EA
7	Reinstall in opposite order
