Removing and installing claxon - AR54.35-P-1555EB
MODEL 210
| Removal, installation | |||
| 1.1 | Remove fan grate | Center fanfare horn with air conditioning (code 580) | |
| 1.2 | Remove engine compartment paneling or bottom section of sound-proofing capsule at front | Right fanfare horn | |

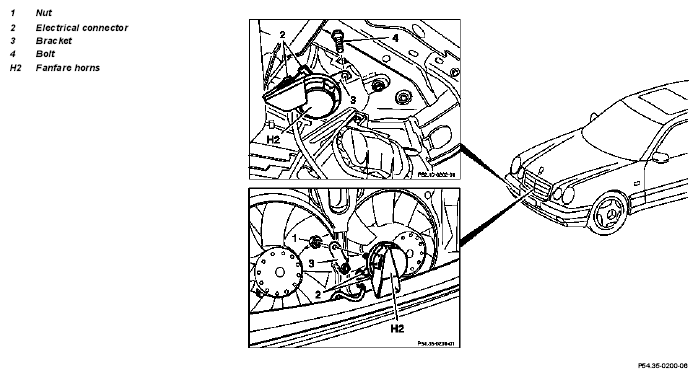

| 2.1 | Unscrew nut (1) and remove fanfare horns (H2) from bracket (3) | Fanfare horns in center with air conditioning (code 580) | |
| 2.2 | Unscrew screw (4) and remove fanfare horns (H2) from bracket (3) | Fanfare horns on right | |
| 3 | Disconnect electrical connector (2) | ||
| 4 | Reinstall in opposite order |
