Removing and installing Parktronic system (PTS) warning indicator in instrument panel - AR54.65-P-0003A
MODEL 210.0 with CODE (220a) Parktronic system (PTS)

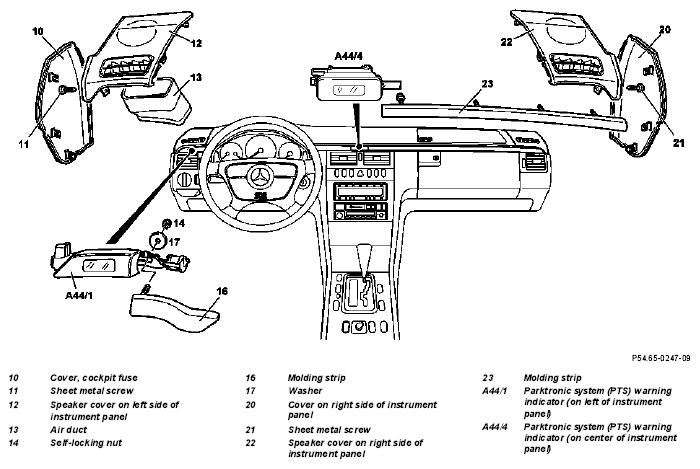

| Removal, installation | |||
| 1 | Remove instrument cluster | AR54.30-P-6015EA | |
| 2 | Remove cover on left side of instrument panel (10) | Remove warning indicator on left side of instrument panel | |
| 3 | Unscrew sheet metal screw (11) | ||
| 4 | Remove speaker cover on left side of instrument panel (12) | ||
| 5 | Remove air duct (13) | ||
| 6 | Unscrew nut (14), remove washer (17) | ||
| 7 | Remove molding strip (16) | ||
| 8 | Pull out Parktronic system (PTS) warning indicator on left side of instrument panel (A44/1) | ||
| 9 | Disconnect connector from warning indicator | ||
| 10 | Remove cover on right side of instrument panel (20) | Remove maintenance indicator on center of instrument panel | |
| 11 | Unscrew sheet metal screw (21), remove speaker cover on right side of instrument panel (22) | ||
| 12 | Lift right molding strip (23) slightly and pull to right | AR68.10-P-1180F | |
| 13 | Pull out Parktronic system (PTS) warning indicator on center of instrument panel (A44/4) | ||
| 14 | Disconnect connector from warning indicator | ||
| 15 | Reinstall in opposite order |
