Removing and installing Parktronic System (PTS) sensors in front bumper - AR54.65-P-0001A

MODELS 208, 210.0 with CODE (220a) Parktronic System (PTS)

Model 208

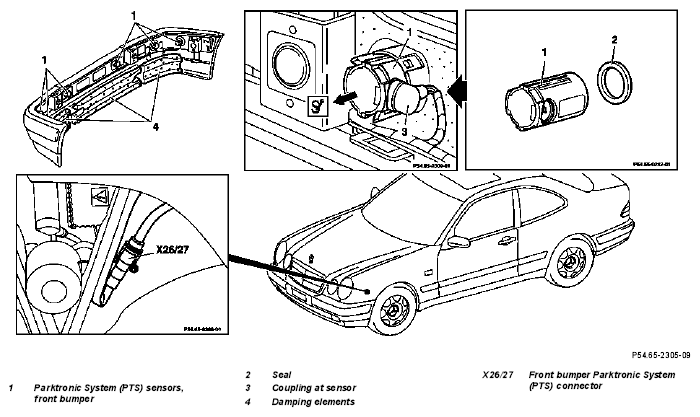

Fig 1: Identifying Parktronic System Sensors In Front Bumper Components - Models 208

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

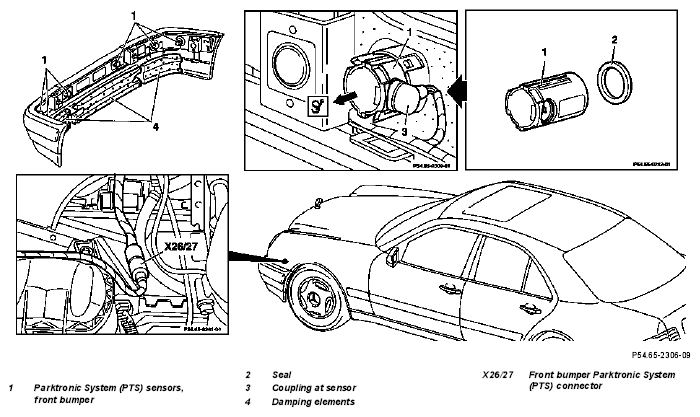

Fig 2: Identifying Parktronic System Sensors In Front Bumper Components - Models 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove front bumper	Model 208	AR88.20-P-2000K
		Model 210	AR88.20-P-2000F
2	Disconnect connector for Parktronic System (PTS) in left front bumper (X26/27)
3	Unclip damping elements (4)
4	Unclip Parktronic System sensor (1) from bracket		Fig 3
5	Disconnect connector (3) from sensor (1)
6	Remove seal (2) from sensor (1)
7	Install in the reverse order

Fig 3: Identifying Releasing Tool (140 589 06 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
