Removing and installing throttle control cable - AR30.10-P-3400C

ENGINE 602.982 in MODEL 210.017 /217

ENGINE 605.962 in MODEL 210.015 /215

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 611.961 in MODEL 210.006 /007 /206 /606

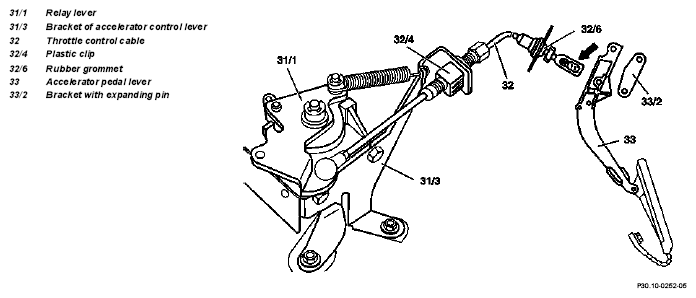

Fig 1: Identifying Throttle Control Cable Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Throttle Control Cable With Spring In Throttle Control Cable Mount

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Press together plastic clip (32/4) and pull together with throttle cable out of bracket of throttle control lever (31/3)
2	Detach throttle control cable mount (arrow) at accelerator pedal lever (33)	Pull out bracket with expanding pin (33/2) for this step, press in.
3	Press throttle control cable (32) out from interior of car	Do not press out rubber grommet (32/6).
4	Take out throttle control cable (32) completely, working from engine compartment	Inspect rubber grommet (32/6), replace if necessary. Throttle control cable with spring in throttle control cable mount. At WOT stop, the accelerator pedal lever travel is increased by the spring being compressed. As a result, the kickdown switch can be operated.
5	Install in the reverse order
6	Inspect throttle control, adjust if necessary		AR30.10-P-1010HC
