Removing and installing position sensor - AR30.10-P-1156H

ENGINE 604.###, 605.910/912/960, 606.912 2# with TRANSMISSION 722.4

Model 202

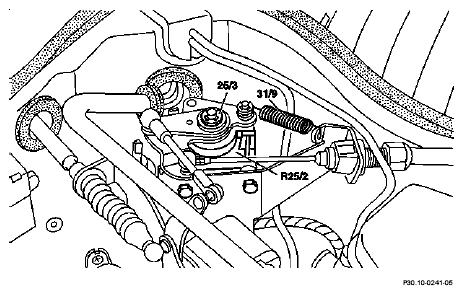

Fig 1: Identifying Position Sensor Components (Model 202)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

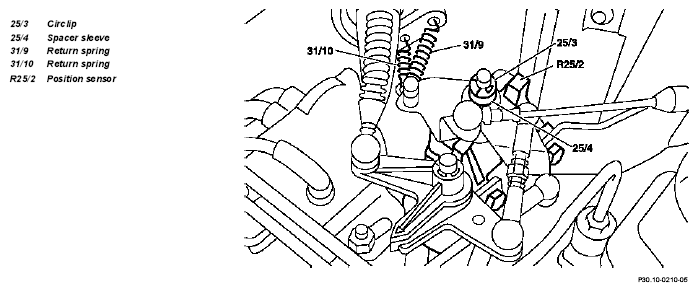

Fig 2: Identifying Position Sensor Components (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Detach return springs (31/9, 31/10).
2	Prise off circlip (25/3).	Installing:  ensure correctly located
3	Take off spacer sleeve (25/4).	Model 202
4	Take off position sensor (R25/2).
5	Install in the reverse order.
6	Check accelerator control, adjust if necessary.	Model 202 with automatic transmission	AR30.10-P-1010HB
		Model 210 with automatic transmission	AR30.10-P-1010HD
