Removing and installing accelerator control cable - AR30.10-P-3400G

ENGINE 111.946 in MODEL 170

ENGINE 111.921 /945 /974 in MODEL 202

ENGINE 111.945 in MODEL 208

ENGINE 111.942 /970, 104.945 /995 in MODEL 210

Shown on engine 104

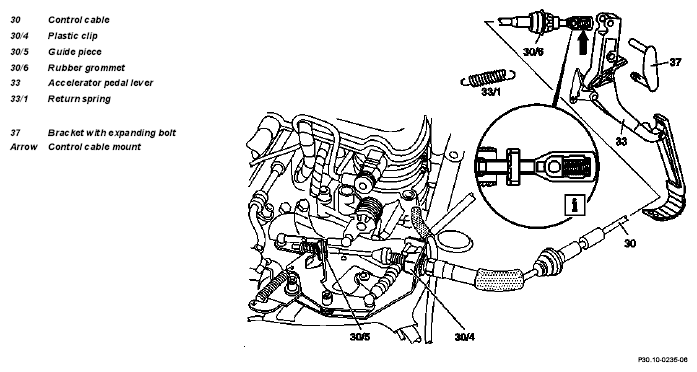

Fig 1: Identifying Accelerator Control Cable Components (Shown On Engine 104)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on engine 111

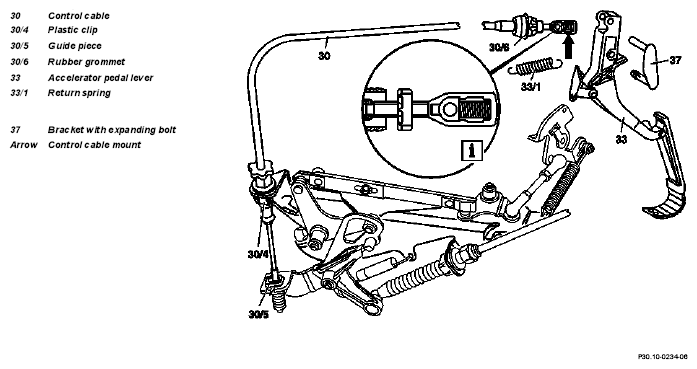

Fig 2: Identifying Accelerator Control Cable Components (Shown On Engine 111)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove guide piece (30/5)	First of all, pull plastic nipple out of guide piece
2	Press plastic clip (30/4) together and pull out of control lever bracket (32/3) with control cable
3	Detach control cable mount (arrow) at accelerator pedal lever (33)	Withdraw bracket with expanding bolt (37) Control cable with spring in control cable mount. When throttle is fully depressed, accelerator pedal lever travel is enlarged by the spring being compressed. This enables the kickdown switch to be operated
4	Press control cable (30) outwards from the interior of the car	Do not press out rubber grommet (30/6)
5	Take control cable (30) out completely from engine compartment
6	Install in reverse sequence
7	Grease control cable (30) between guide piece (30/5) and end piece with anti-corrosion grease		*BR00.45-Z-1006-06A
8	Check accelerator control, adjust	Engine 104	AR30.10-P-1010DA
		Engine 111.921/942/945/946/970/974	AR30.10-P-1010G
