Adjusting accelerator control - AR30.10-P-1010DA

ENGINES 104.945/995 in MODEL 210

Engine 104

Shown with automatic transmission

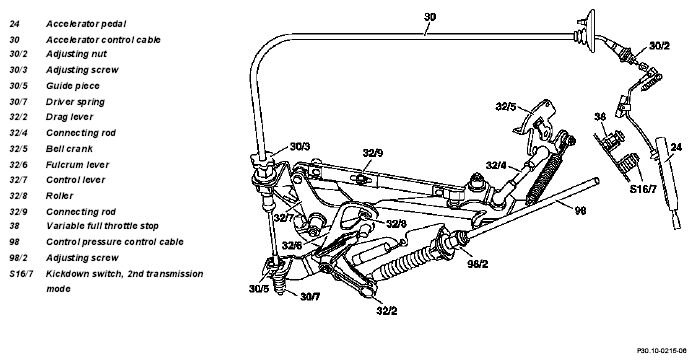

Fig 1: Identifying Accelerator Control Components (Engine 104)
G04624494Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

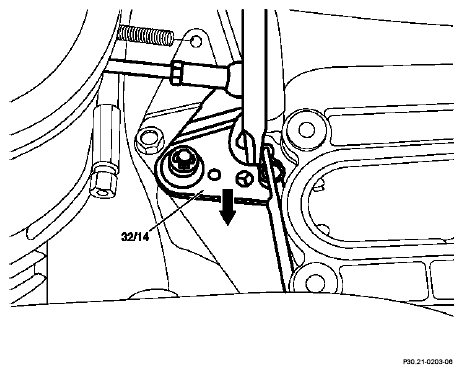

Fig 2: Pressing Transfer Lever
G04624495Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  Adjusting
IMPORTANT Ignition: OFF
1 Inspect connecting rods (32/4, 32/9) and accelerator control cable (30) to ensure they operate freely and are in proper condition Replace parts if necessary
2 Check play between driver spring (30/7) and guide piece (30/5), adjust There must be play between driver spring (30/7) and guide piece (30/5). Set with adjusting screw (30/3), if necessary *BE30.10-P-1001-01A
3 Remove, install resonance flap   AR09.20-P-1791D
4 Loosen clamping bolt on connecting rod (32/9)
5 Press transfer lever (32/14) forwards using large screwdriver IMPORTANT Against the spring force in the actuator
6 Tighten clamping bolt on connecting rod (32/9)
7 Detach connecting rod (32/4) at one end and check closed throttle position (idle) stop The bell crank (32/5) must be resting against the closed throttle position (idle) stop of the idle speed control actuator.
8 Attach connecting rod (32/4) free of tension The connecting rod (32/4) must remain set to a fixed size. Measure between centers of ball sockets
IMPORTANT The adjustment of the connecting rod (32/4) must be performed very accurately. The microswitch for the idle speed control must be operated when doing this (closed)
*BE30.10-P-1002-01A
9 Idle speed adjustment at engine end  Check setting of control lever (32/7), adjust Engine 104:  The roller (32/8) in the control lever (32/7) must be resting free of tension against the end stop of the fulcrum lever (32/6). Adjust fulcrum lever (32/6) with connecting rod (32/9), if necessary, so that the roller (32/8) is resting free of tension against the end stop
10 Adjust control pressure control cable (98) With control pressure control cable attached, turn adjusting screw (98/2) until the tip of the drag lever (32/2) is at the same level as the tip of the fulcrum lever (32/6)
11.1 Checking full throttle stop, adjusting  Manual transmission:  With engine switched off, depress accelerator pedal (24) to full throttle stop. Bell crank (32/5) must be resting against full throttle stop of idle speed control actuator. Release variable full throttle stop (38), if necessary, by turning to the left. Pull out stop pin slightly, lock full throttle stop (38) in position by turning to the right.
11.2   Automatic transmission:  With engine switched off, depress accelerator pedal (24) to full throttle stop at kickdown switch (S16/7) (do not operate kickdown switch).
Bell crank (32/5) must just be resting against the full throttle stop of the idle speed control actuator; set with adjusting screw (30/3), if necessary

12 Checking idle speed adjustment at chassis end, adjusting  Accelerator pedal (24) in idle speed position. There must be play between driver spring (30/7) and guide piece (30/5); adjust from inside car with adjusting nut (30/2), if necessary
13 Grease accelerator control cable (30) between end piece and guide piece (30/5) with anti-corrosion grease   *BR00.45-Z-1006-06A
Test values of accelerator control

Number Designation Engine 104
BE30.10-P-1001-01A Play of accelerator control cable between driver spring and guide piece at fulcrum lever mm 0, 5 - 1, 0
BE30.10-P-1002-01A Length of connecting rod to bell crank (fixed dimension) mm 84
Repair materials

Number Designation Order number
BR00.45-Z-1006-06A Grease A 001 989 37 51 10
