Removal, installation and adjustment of microswitch for the closing aid on front and rear door locks - ra72001400264x(0264)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Lock in driver's door removed Removal and installation of the driver's door lock or lock in rear door removed Removal and installation of the rear door lock
- Removal and installation of microswitch (power latch switch S86/2s2 or S87/4s2) on front door lock
- Removal and installation of microswitch (power latch switch S86/3s2 or S87/5s2) on rear door lock
- Adjustment of microswitches

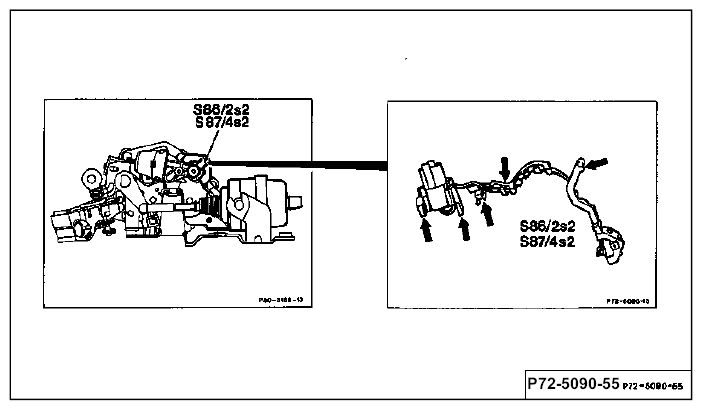

A. Removal and installation of microswitch (power latch switch S86/2s2 or S87/4s2) on front door lock
| Microswitch (power latch switch S86/2s2 or S87/4s2), cable duct and plug connector | unclip (arrows) and remove. |
|
NOTE:
On vehicles with infrared remote control it is also necessary to replace the rotary tumbler microswitch (S87/6) located on the plug connector. (Repair Instructions 80/450)
|
|
| New microswitch | install. |
| Adjust microswitch as described in C. |
Diagnosis description: see Diagnosis Manual, Body, Volume 1
Electric Wiring Diagrams:
see "Electric Wiring Diagrams" Model 140, Volume 2.

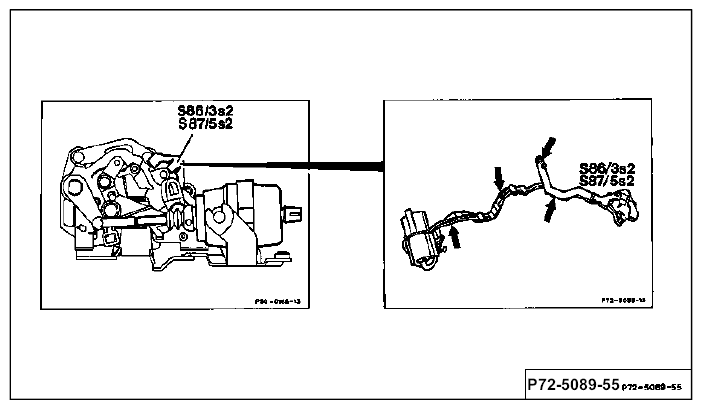

B. Removal and installation of microswitch (power latch switch S86/3s2 or S87/5s2) on rear door lock
| Microswitch (power latch switch S86/3s2 or S87/5s2), cable duct and plug connector | unclip (arrows) and remove. |
| New microswitch |
NOTE:
On vehicles with infrared remote control it is also necessary to replace the rotary tumbler microswitch (S87/2, S87/3) located on the plug connector. (REMOVING AND INSTALLING LEFT AND RIGHT REAR ROTARY TUMBLER MICROSWITCHES (S87/2, S87/3)
) install.
|
| Adjust microswitch as described in C. | |
| Perform function check. |

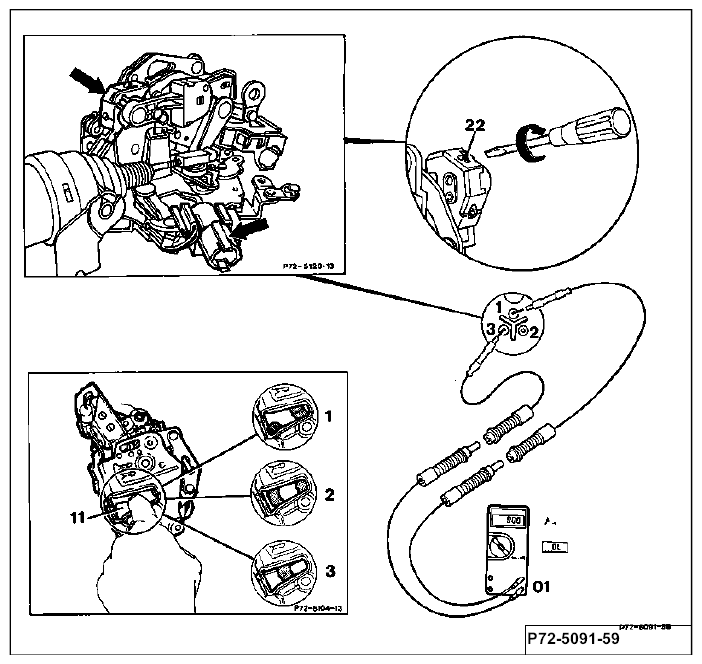

C. Adjustment of microswitches
Microswitch replaced (A or B)
| shown on front door lock | |
| Multimeter (01) and test cable | connect to (arrow) |
| Multimeter | set to acoustic continuity test. |
| Rotary tumbler (11) | move to drive catch (second catch). |
| Screw grub screw (22) on microswitch in clockwise | with screwdriver until acoustic signal sounds, then turn an additional 1.5 - 2 rotations. |
| Tumbler (11) | move to main catch (third catch). Acoustic signal should stop. |
| Actuate rotary tumbler by hand only when pneumatic connection is disconnected (injury hazard). | |
| Lock | install. |
| Function check | perform. |
Special tool
COMMERCIALLY AVAILABLE TOOLS AND TESTING EQUIPMENT
| Designation | e.g. company, order no. |
| Multimeter | e.g. Fluke 23 DB Sun DMM5 Thorn Emi Avometer 2003 |
