Replacing rear crankshaft radial seal - RA03001193270X(03-3270)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Transmission removed (27-600) .

Driven plates removed (03-4100) .

Operation no. of operation texts and work units or standard texts and flat rates

03-3063 - 03-3301

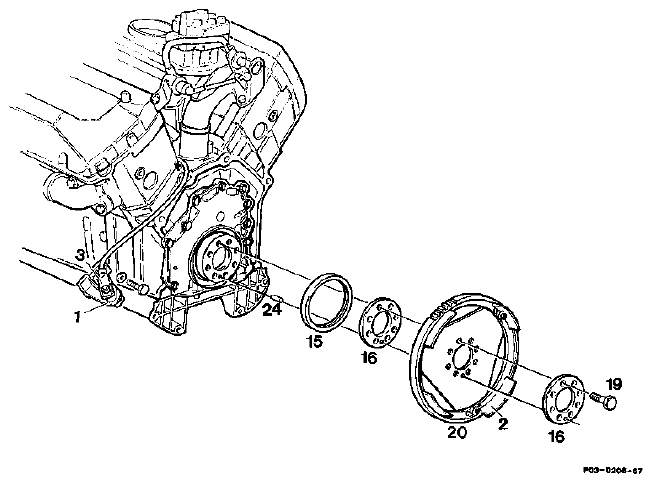

Fig 1: Identifying Driven Plates And Crankshaft Radial Seal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Radial seal (15)	remove (step 1).
Sealing lip of radial seal (15)	oil.
Radial seal (15)	install with insertion tool, special tool 117 589 00 43 00 (steps 3 to 6).
Driven plates (20)	install (03-4100) .
Leaks	check at rear of engine when running (01-2240) .

Special tools

Fig 2: Identifying Special Tools (117 589 00 43 00 03)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tools (119 589 00 40 00 15)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insertion tool

Use only insertion sleeve 117 589 00 43 00 (2nd version) with hole for locating pin.

Insertion sleeve 117 589 00 43 00 (1st version) can be altered by a hole with the dimensions "A, B, C" as shown in the drawing.

Size A=38 mm

B=15.6 mm

C=10 mm

Fig 4: Identifying Insertion Sleeve Dimensions A, B And C

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: The end cover guides the engine oil from the main oil gallery (arrow) to the two oil passages for the oil supply of the cylinder heads and is sealed with a sealing compound.

For this reason, the radial seal should be replaced if possible without removing the end cover.

If a leak exists at the rear, first of all clean engine and spray dried surrounding area with Mercedes-Benz white contrast spray, Part No. 000 989 03 59. Support engine, run and determine leakage point .

The running surface for the rear radial seal on the crankshaft is hardened and ground without a spiral.

Fig 5: Locating Cylinder Head End Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Prise out radial seal with a screwdriver.

Do not damage crankshaft and mounting hole for the radial seal. Use clean cloth as a base.

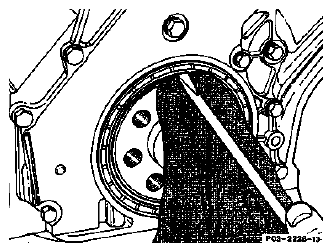

Fig 6: Prising Out Radial Seal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Examine running surface on crankshaft. If running surface has grooves, install repair size radial seal (15) with sealing lip offset 1.75 mm to inside, and maintain offset repair position of radial seal.

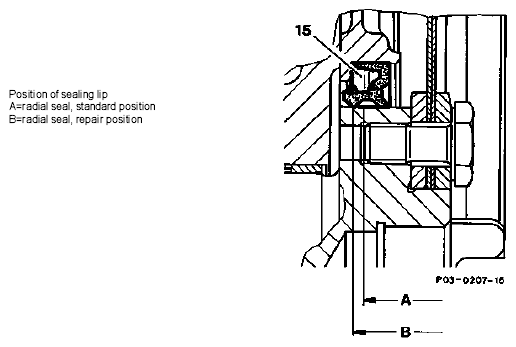

Fig 7: Identifying Radial Seal Standard And Repair Position
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Bolt inner part of special tool 117 589 00 43 00 to crankshaft.
Coat radial seal between dust lip and sealing lip with engine oil.

Do not use grease! Grease prevents the sealing lip of the radial seal transporting back the engine oil.
Push radial seal onto inner part of special tool 117 589 00 43 00.

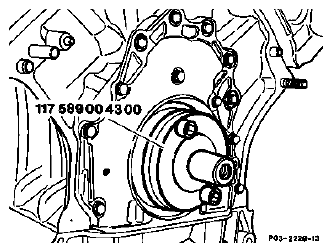

Fig 8: Identifying Special Tool (117 58900 4300)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Press radial seal into the end cover with the insertion tool 117 589 00 43 00.
NOTE: The dust lip must not touch the crankshaft otherwise leaks will occur as a result of the pumping effect.
Check rear of engine for leaks with engine running (01-2240) .

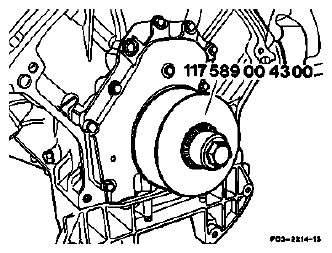

Fig 9: Identifying Special Tool (117 589 00 43 00)
