Removing and installing driven plate with ring gear - RA03001044100X(03-4100)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Automatic transmission removed (27-600) .

Retaining lock for crankshaft/ring gear installed (03-5000) .

Operation no. of operation texts and work units or standard texts and flat rates

03-8001-8201

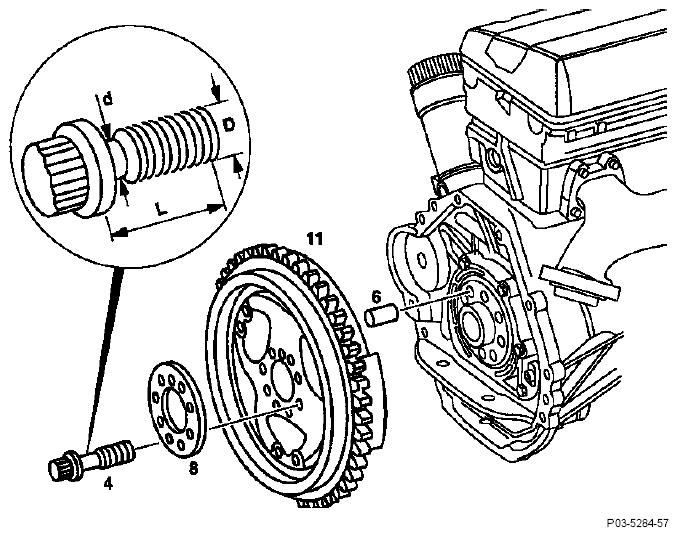

Fig 1: Identifying Driven Plate And Ring Gear Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Stretch bolts (4) or internal torx bolt	unscrew, screw on.
Stretch bolts (4)	inspect, see table.
Internal torx bolt	replace.
Stretch shank bolt (4)	replace if minimum stretch shank shaft dia. (d) does not exist.
Driven plate with ring gear (11) and plate (8)	remove, install.
Dowel pin (6)	note.

BOLT ATTACHMENT OF DRIVEN PLATES

Type of bolt

Internal torx T55 ⁽¹⁾

Stretch bolt

Thread

M10 X 1

M 10 X 1

Stretch shank Ø

d
when new minimum Ø

8.5 - 0.2

8.0

Length of bolt

L when new

28.5

22±0.2 (max. 22.5)

Tightening torque⁽²⁾

45 Nm+90° tightening angle

⁽¹⁾	As of May 1995 instead of stretch bolt

⁽²⁾	Thread and bolt contact surface moistened with assembly oil

Special tools

Fig 2: Identifying Special Tools (001 589 66 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tools (000 589 01 10 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: If no tightening angle wrench is available, the stretch shank bolts can be tightened further to the specified angle in a single operation with a wrench socket and tommy bar. A flexi-rod torque wrench must not be used for tightening according to degrees of angle in order to avoid angle errors.

Fig 4: Locating Tightening Angle Stretch Shank Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The internal torx bolts installed as of May 1995 must be used only once and should be replaced after each removal and installation operation.

Fig 5: Identifying Internal Torx Bolts Dimensions

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

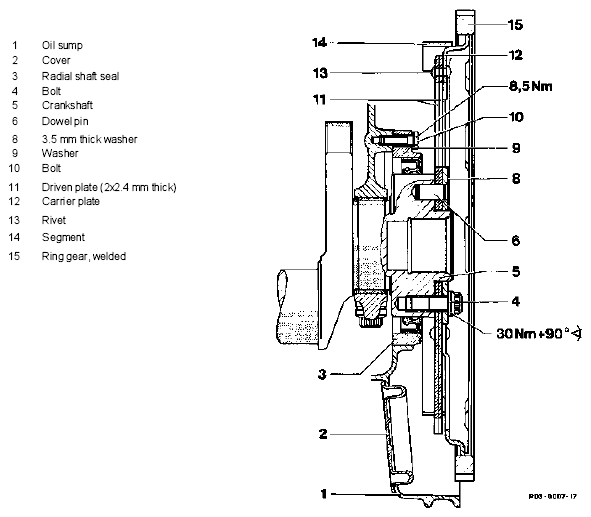

Fig 6: Identifying Oil Pump, Radial Shaft Seal And Driven Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
