Removal and installation of the crank window in rear door - ra72001400191x(0191)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Door liner on rear door removed (Removal and installation of the lining on the rear door )

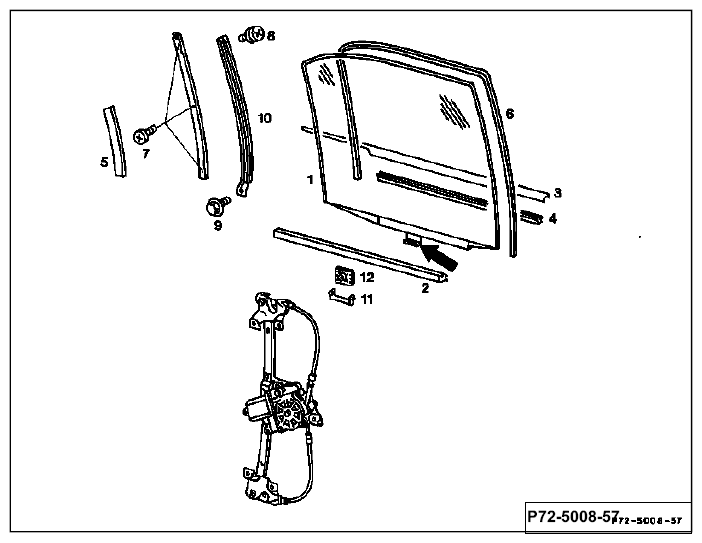

| Crank window (1) | open. |
| Vapor seal on interior door panel | pull off. |
| Interior sealing channel (2) on door shaft | remove. |
| Exterior molding (3) and sealing channel (4) on door shaft | remove. |
| Window guide channel (6) | remove. |
| Cover (5) on inside of window stay | remove. |
| Screw (7) on inside of window stay | screw out (3 each). |
| Screw (8) at top of window stay | screw out while pulling door sealing frame out in area of stay. |
| Screw (9) at bottom of window stay | screw out, 10 mm. |
| Window stay (10) | remove toward front. |
| Retaining strap (1) on slider (12) | unclip. |
| Slider (12) | move out by moving window back and forth on rear window lift mechanism (arrow). |
| Crank window (1) | remove upward out of door shaft. |
| Reinstall | in opposite order. |
| Crank window adjustment | check before installing door liner, readjust, if required (Adjustment of the crank window in the rear door ). |
