Adjustment of the crank window in the rear door - ra72001400196x(0196)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Door liner on rear door removed (Removal and installation of the lining on the rear door )

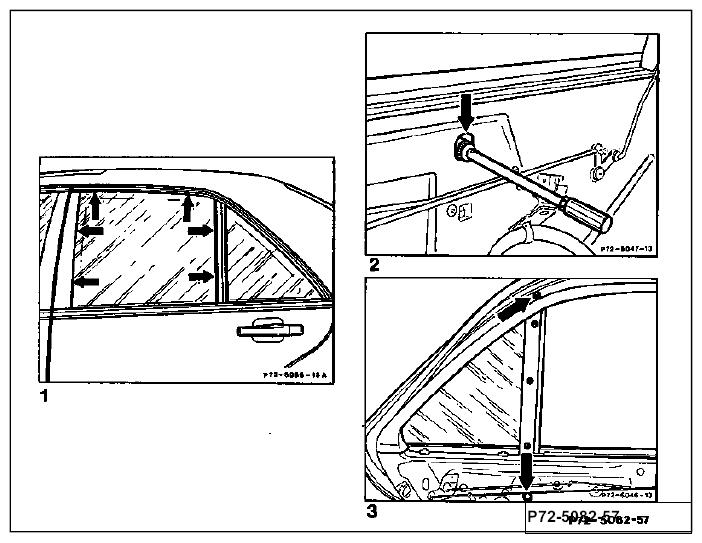

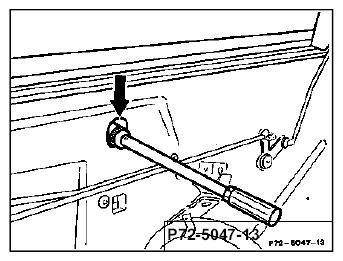

Fig 1: Identifying Crank Window In Rear Door Adjustment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vapor seal on interior door panel	pull off.
Crank window	close and check clearance at top between window guide channel and outer edge of window with 0.3 mm feeler gauge.
Adjustment	correct with stop at top of interior door panel, Fig 1.
Lateral clearance	measure with window closed. Nominal value: 0.3 mm.
Adjustment	correct on window stay.
Covering on inside of window stay	remove.
Door sealing frame	pull out of channel in area of window stay, top.
Screws at top and bottom of window stay	loosen, Fig 1.
Window stay	adjust so that vertical clearance between window guide channel and outer edge of glass is 0.3 mm at front and rear.
Screws at top and bottom of window stay	tighten.
Door sealing frame	install.
Screws on inside of window stay	(3 each) loosen.
Cover on stationary window	press toward rear and tighten screws.
Interior covering on window stay	install.
Slider on window lift bar	lubricate, use MB paste lubricant part number 000 989 31 51.
Door liner on rear door	install.
Function	check.

Special tools

Fig 2: Identifying Special Tool (617 589 00 40 00 05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tool (617 589 02 23 00 05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Adjustment

Close crank window.
Check clearance at top between window guide channel and outer edge of glass. Use special tool (0.3 mm feeler gauge).
If adjustment is required, open crank window and adjust upper stop (step 4).

Fig 4: Adjustment Upper Stop
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

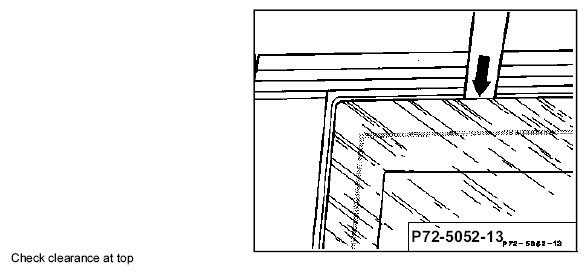

Fig 5: Checking Clearance At Top
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

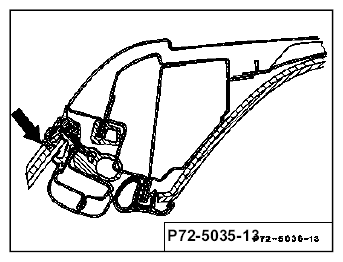

Loosen screw on upper window lift stop and correct clearance by moving stop.

Fig 6: Locating Screw On Upper Window Lift Stop
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Check clearance between vertical window guide channel and outer edge of glass. Clearance should be 0.3 mm at front and rear.
Move window stay to correct clearance (steps 7-14).

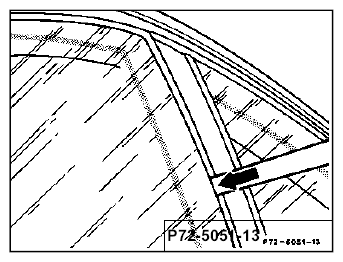

Fig 7: Checking Clearance Between Vertical Window Guide Channel And Outer Edge Of Glass
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Install cover on inside of window stay.
Pull out sealing frame in area of window stay.

Fig 8: Pulling Out Sealing Frame In Area Of Window Stay
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Loosen screws (arrows) on window stay.
Adjust window stay so that vertical clearance between window guide channel and outer edge of glass is 0.3 mm at front and rear.

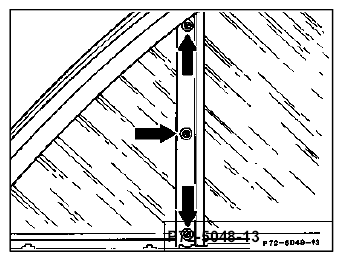

Fig 9: Locating Screws On Window Stay
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Tighten screws at top and bottom of window stay.
Install sealing frame.

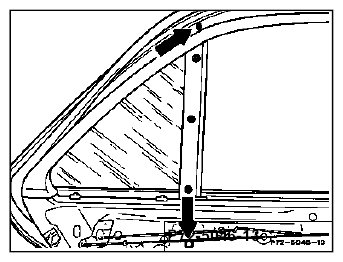

Fig 10: Locating Screws At Top And Bottom Of Window Stay
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

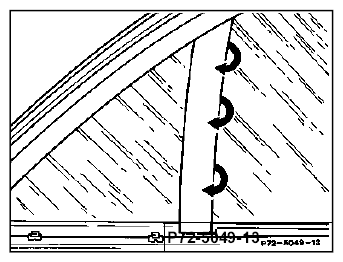

Loosen screws (arrows) on inside of window stay and press cover on window stay toward rear, then retighten screws.
Install cover on inside of window stay.
Lubricate slider on window lift bar with MB-Lubricant Paste part no. 000 989 31 51.
Check automatic closing operation (FUNCTION OF CONVENIENCE CONTROL (POWER WINDOWS AND TILTING/SLIDING ROOF) ).
Install door liner.

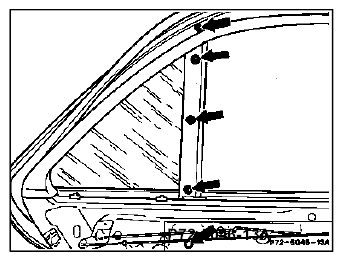

Fig 11: Locating Screws (Arrows) On Inside Of Window Stay
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
