Removal and installation of the roof frame paneling, front - ra68001400400x(0400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Molding at side of windshield removed (Remove and install the reveal molding at the side of the windshield ).
Ceiling light removed (REMOVAL AND INSTALLATION OF DOME LAMP WITH DELAY AND READING LAMP ).

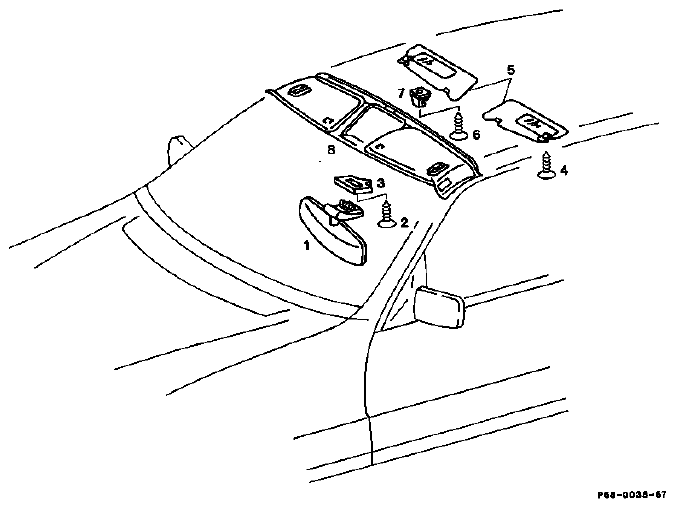

| Interior mirror (1) | remove. |
| Screws (2) | screw out, remove mounting plate (3). |
| Screws (4) | screw out, remove sun visor (5). |
| Screws (6) | screw out, remove mount (7). |
| Panelling (8) | remove. |
|
NOTE:
On vehicles with sliding roof the bar at the front of the roof cutout must be removed upward.
|
|
| Installation | install in opposite order. |
