Removal, installation and setting of the camshaft position sensor - ra15lh1042143x(2143)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Preceding work:
Removing and installing cylinder head cover (01-0500)
Removing and installing engine compartment panelling (61-0105)
Operation No. of operation texts and operation values or standard texts and flat rates 15-2143
| Crankshaft | rotate until contact sensor is opposite the position sensor. |

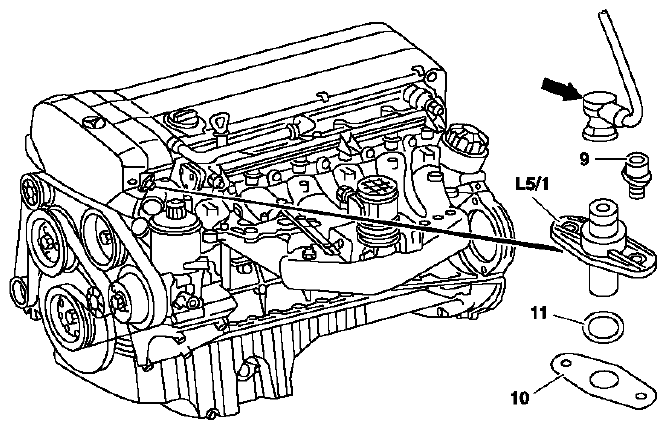

| Connector of camshaft position sensor (arrow) | unplug, plug in. |
| Bolts (9) | unscrew, screw in. Tightening torque 10 Nm as reference value. |
| Camshaft position sensor (L5/1) | unplug, plug in. Replace O-ring (11). |
| Clearance of camshaft position sensor (L5/1) | adjust. |

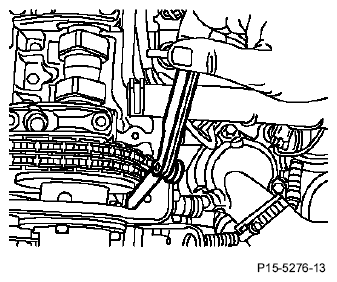

Check size of gap 0.4 to 0.6 mm between camshaft sprocket segment and position sensor
(L5/1) with feeler gauge (aim for average of 0.5 mm); adjust to correct clearance if necessary with shim (10).
| Shims (10) | are available in 1/10 graduations from 0.1 to 1.0 mm |
| LH control unit and EZL/AKR ignition control unit fault memories | read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0). |
PARTS
| Designation | Thickness in mm | Part no. |
|---|---|---|
| Shim | 0.1 | 119 153 11 52 |
| Shim | 0.2 | 119 153 12 52 |
| Shim | 0.3 | 119 153 13 52 |
| Shim | 0.4 | 119 153 14 52 |
| Shim | 0.5 | 119 153 15 52 |
| Shim | 0.6 | 119 153 16 52 |
| Shim | 0.7 | 119 153 17 52 |
| Shim | 0.8 | 119 153 18 52 |
| Shim | 0.9 | 119 153 19 52 |
| Shim | 1.0 | 119 153 20 52 |
