Remove/install cylinder head cover (engine with HFM-SFI 6 cyl.) - RA0100104C500X(01-0500)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
- C. Engines with HFM-SFI (HFM sequential multiport fuel injection/ignition system)
Preceding work:
Ignition coils removed (AR15.12-2003G )
Operation no. of operation texts and work units or standard texts and flat rates:
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

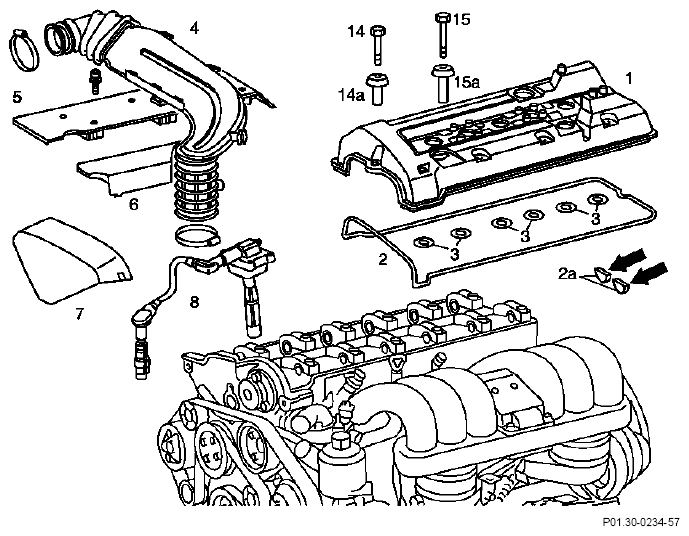

Cover (7) and (6) remove, install. Bolts (14) and (15) with spacer sleeves (14a) and (15a) unscrew, screw on; see bolt diagram (10 Nm). Cylinder head cover (1) with gaskets (2) and (2a) and shaft seals (3) Take off, fit on; replace only together. NOTE: Remove grease from sealing groove and existing re-usable gasket (2) so that the gasket (2) adheres better to the cylinder head cover (1).
(Do not grease new gasket!).Engine run. Leaktightness check, particularly at rear (arrows) at the gaskets (2a) and in the spark plug recesses.
