Replacing rear crankshaft radial seal - AR03.20-P-3063AO

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120

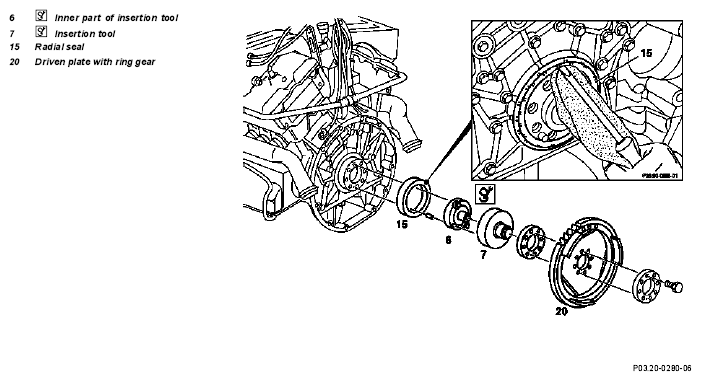

Fig 1: Identifying Radial Seal, Driven Plate And Ring Gear

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove rear crankshaft radial seal (15)	Do not damage crankshaft and mounting hole for the radial seal. Use a clean cloth as a base.
2	Install rear crankshaft radial seal (15)		AR03.20-P-3063-01AO
			Figure
		Pay attention to installation notes for crankshaft radial seal.	AH03.20-P-0001-01AO
3	Install in the reverse order
4	Inspect rear of engine for leaks		AR01.40-P-8913-01AO

Fig 2: Identifying Installation Tool (117 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
