Removing and installing electronic accelerator actuator with throttle valve body - AR30.20-P-1262F
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 120.980/981

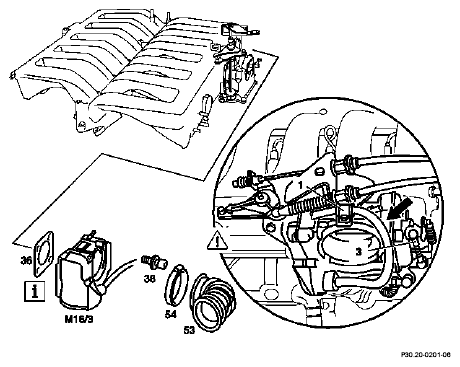

Left electronic pedal actuator for right bank of cylinders (M16/4) illustrated
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Remove air cleaner, install | AR09.10-P-1050F | ||
| Electric cable (arrow) | must not chafe against intake air shaped hose and against fuel pipe. Slacken cable clip at accelerator control mounting bracket (1), if necessary, and alter position of the electric cables so that cable runs without touching. Tighten cable clip. | ||
| 3 | Accelerator control linkage at electronic accelerator actuator (M16/3) | detach, attach. If necessary ↓ |
|
| adjust accelerator control | AR30.10-P-1010F | ||
| 36 | Gasket | ||
| 38 | Bolts | *BA30.20-P-1001-01A | |
| Bottom crankcase breather at actuator | disconnect, fit on | ||
| Purge control valve vacuum hose at actuator | disconnect, fit on |
| Number | Designation | Engines 119, 120 | |
|---|---|---|---|
| BA30.20-P-1001-01A | Bolt, electronic accelerator to intake pipe | Nm | 25 |
