Testing reference resistor - RA30001240506X(30-506)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Job No. of the job texts and work units and standard texts and flat rates

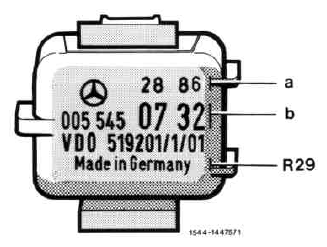

Fig 1: Identifying Tempomat/Cruise Control (TPM) Reference Resistor (1 Of 2)
G04684686Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Tempomat/Cruise Control (TPM) Reference Resistor (2 Of 2)
G04684687Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tempomat/cruise control (TPM) reference resistor (R29)

Ohmmeter

Resistance values

remove, install (30-566) . Production date (a). Part no. (b), jack designation (c). For several reference resistors there is no jack designation A-G. These reference resistors must be tested as shown on figure at the right.

connect (refer to table).

check (refer to table), replace Tempomat/cruise control reference resistor (R29) if values deviate.

TEST TABLE - RESISTANCE VALUES

Part no. Connection ohmmeter to jack designation
E-G kΩ E -F kΩ E-B kΩ E - D Ω D - H D - C Ω A - D Ω
005 545 07 32 501-521 26.2-27.2 1470-1530 ∞ 3.21-3.27 kΩ < 10 ∞
005 545 08 32 501-521 26.2-27.2 1470-1530 ∞ 1.98-2.02 kΩ < 10 ∞
005 545 09 32 684-712 39.4-41 1190-1230 ∞ 6.52-6.78 kΩ < 10 ∞
005 545 10 32 684-712 39.4-41 1190-1230 ∞ 8.28-8.62 kΩ < 10 ∞
005 545 11 32 667-695 52.4-55.2 1960-2040 (1) ∞ 2.88-3 kΩ ∞ < 10
005 545 42 32 98-102 19.6-20.4 592-616 ∞ 3.18-3.30 kΩ ∞ < 10
005 545 43 32 166-172 13-13.6 490-510 ∞ 1.37-1.43 kΩ ∞ < 10
005 545 44 32 667-695 48.9-50.9 1590-1650 ∞ 1.71-1.78 kΩ ∞ < 10
005 545 46 32 1660-1720 39.4-41 1470-1530 ∞ < 10 Ω ∞ < 10
006 545 25 32 980-1020 39.4-41 1470-1530 ∞ 1.98-2.02 kΩ < 10 ∞
006 545 26 32 1470-1530 98-102 3570-3720 (1) ∞ 325.4-338.6 Ω ∞ < 10
006 545 61 32 980-1020 98-102 2940-3060 (1) ∞ 3.92-4.08 kΩ ∞ < 10
007 545 06 32 1080-1120 39.4-41 1190-1230 ∞ 1.92-2 Ω ∞ ∞
007 545 12 32 684-712 39.4-41 1190-1230 ∞ 1.92-2 k Ω ∞ ∞
007 545 13 32 501-521 35.8-37.2 1470-1530 ∞ 2.62-2.72 kΩ ∞ ∞
007 545 39 32 465-485 39.4-41 1190-1230 ∞ 1.92-2 k Ω ∞ ∞
007 545 40 32 1210-1270 98-102 2950-3070 (1) ∞ 1.3-1.36 kΩ ∞ < 10
007 545 50 32 684-712 39.4-41 1470-1530 ∞ 6.84-7.12 kΩ < 10 ∞
007 545 51 32 684-712 39.4-41 1470-1530 ∞ 8.91-9.27 kΩ ∞ ∞
007 545 53 32 606-632 25.6-26.6 0.98-1.02 ∞ 3.93-4.09 kΩ ∞ ∞
007 545 54 32 980-1032 48.9-50.9 1960-2040 (1) ∞ < 10 Ω ∞ < 10
007 545 55 32 501-521 35.8-37.2 1470-1530 ∞ 3.41-3.55 kΩ ∞ < 10
007 545 56 32 489-509 65.2-67.8 2380-2480 (1) ∞ 3.41-3.55 kΩ ∞ < 10
007 76 32 545 607-631 39.4-41 1190-1230 ∞ 2.17-2.25 kΩ < 10 < 10
009 545 15 32 684-712 39.4-41 1190-1230 ∞ 7.35-7.65 kΩ ∞ ∞
010 545 29 32 684-712 39.4-41 1190-1230 ∞ 934-937 Ω ∞ ∞
010 545 30 32 980-1020 25.6-26.5 1190-1230 ∞ 3.94-4.1 kΩ < 10 < 10
012 545 87 32 2380-2480(1) 62.1-64.7 2500-2600(1) ∞ 84.87-88.33 kΩ < 10 < 10
(1) These values cannot be measured with SUN DMM-5.
TEST TABLE - RESISTANCE VALUES

Part no. Connection - ohmmeter to jack designation
E-G kΩ E -F kΩ E-B kΩ E - D Ω D - H D - C Ω A - D Ω
014 545 30 32 1705-1775 39.4-41 1509-1571 ∞ 84.86-88.34 kΩ ∞ < 10
014 545 80 32 2274-2366(1) 52.9-61.6 2813-2927(1) ∞ 2.38-2.47 kΩ ∞ ∞
014 545 82 32 772-802 24.5-25.3 980-1020 ∞ 2.17-2.25 kΩ ∞ < 10
014 545 84 32 637-661 31.8-33 1402-1458 ∞ 1.51-1.57 kΩ ∞ < 10
(1) These values cannot be measured with SUN DMM-5.
COMMERCIALLY AVAILABLE TOOLS OR TESTERS, MB TESTERS (REFER TO EQUIPMENT MANUAL)

Designation e.g. Company, order no.
Multimeter Fluke 23-DB, 83, 88
ITT Metrix MX 47, 50, 51, 52
SUN DMM-5
