Removal and installation of cruise control reference resistor - RA30001240566X(30-566)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Cover at left or right under instrument panel removed (68-150) .
Operation no. of operation texts and work units or standard texts and flat rates
- Model 124
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

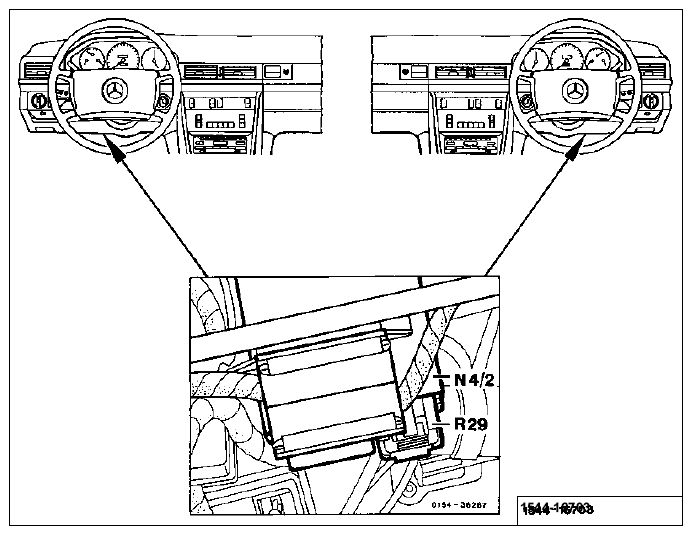

Tempomat/cruise control reference resistor (R29) at Tempomat/cruise control (TPM) reference
resistor amplifier (N4/2)disconnect, by pushing lateral retaining tongues and connect. Function test perform on road. - Model 129
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

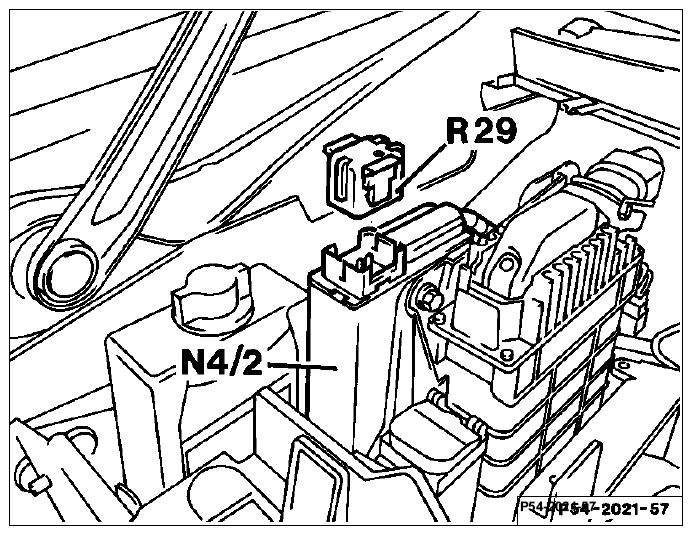

Cover of unit compartment, right remove, install. Tempomat/cruise control reference resistor (R29) at Tempomat/cruise control (TPM) reference
resistor amplifier (N4/2)disconnect, by pushing lateral retaining tongues and connect. Function test perform on road. - Model 140
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

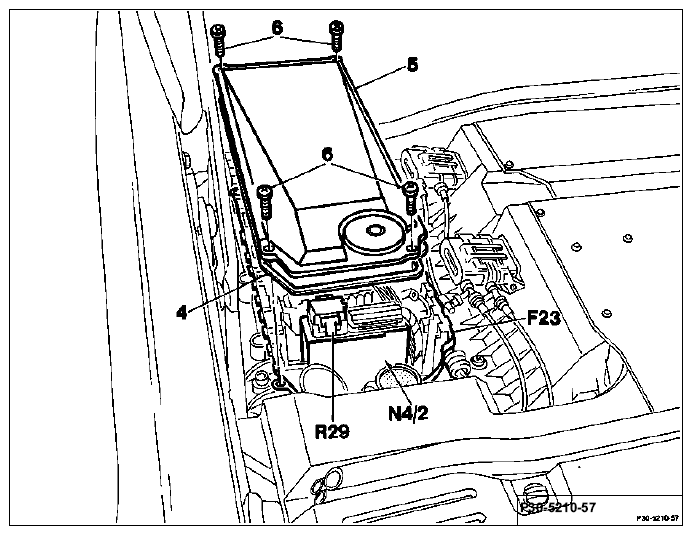

Screws (6) unscrew, screw in. Cover (5)of module box (F23) lift, install. Gasket (4) check for damage, when installing, ensure correct seat of gasket (4). Tempomat/cruise control reference resistor (R29) at Tempomat/cruise control (TPM) reference disconnect, by pushing lateral retaining tongues and connect. resistor amplifier (N4/2) Function test perform on road. - Model 201
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

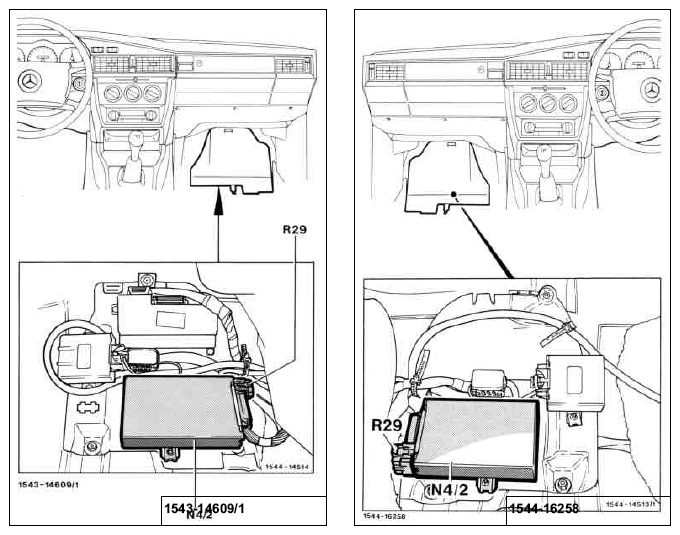

Floor mat front right or left remove, install. Foot support front right or left remove, install. Tempomat/cruise control reference resistor (R29) at Tempomat/cruise control (TPM) reference
resistor amplifier (N4/2)disconnect, by pushing lateral retaining tongues and connect. Function test perform on road.
